Stainless steel indexing plunger CAK

technopolymerzinc-plated steelthreaded

Product description

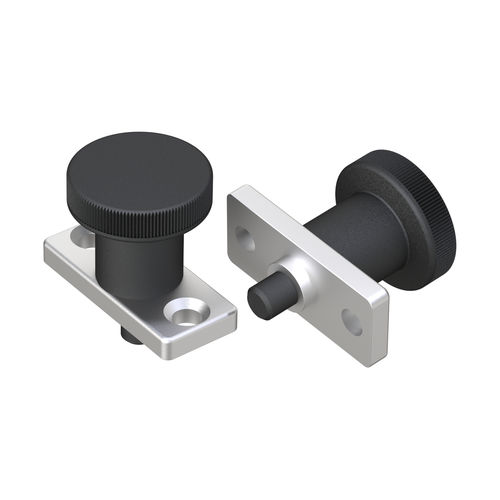

Our CAK family consists of a not lockable index bolt with fixing plate to be fixed with 2 M6 countersunk head screws. The knurled head is made of PA6 (Polyamide 6), the fixing plate in ZCS (zinc plated steel) and the plunger in S (Stainless steel).

Usage
Locking and positioning pins are used when locking, indexing or securing two or more components in the desired position. A temporary fixed positioning of the component is possible but can be released and changed at any time by actuating the catch. No additional tools are required for application.

Standards & Certificates

• RoHS: Compliant
• UL94: Not specified
• IP: Not specified
• Drawings: 2D PDF available
• Product video: Available

Product variants (measures expressed in Millimeters)
Reference | D | d | H | h | B | L | l | T1 / T2
03100400001 | 25,00 | 6,00 | 37,00 | 4,50 | 18,00 | 40,00 | 30,00 | 6,00 / ·
03100400002 | 25,00 | 6,00 | 45,00 | 4,50 | 18,00 | 40,00 | 30,00 | 14,00 / 8,00
03100400003 | 31,00 | 8,00 | 44,00 | 5,50 | 20,00 | 46,00 | 34,00 | 8,00 / ·
03100400004 | 31,00 | 8,00 | 54,00 | 5,50 | 20,00 | 46,00 | 34,00 | 18,00 / 10,00

Characteristics / technical specifications

• Model / family: CAK
• Type: Screwable index bolt without stop (not lockable)
• Head material: PA6 (Polyamide 6)
• Fixing plate material: ZCS (zinc plated steel)
• Plunger material: S (Stainless steel)
• Fixing: To be fixed with 2 M6 countersunk head screws
• Function: Locking, indexing and temporary positioning of components; releasable by actuating the catch; no additional tools required
• Measurements unit: Millimeters
• Certificates: RoHS compliant
• UL94: Not specified
• IP: Not specified
• Variants available: 03100400001, 03100400002, 03100400003, 03100400004
• Options: RAL colour version available
