Operating handwheel LHME

controldiscplastic

Description

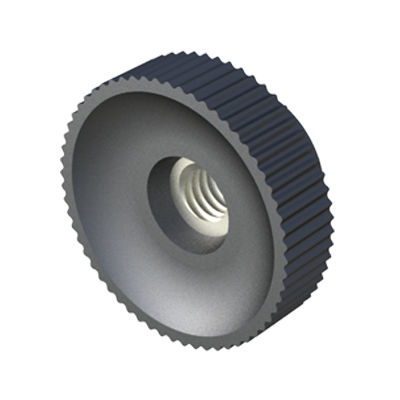

The LHME female handwheel features a knurled head for improved grip and an open screw hole for through-thread fastening.

Documents & compliance

• RoHS: Yes
• UL94: Not available
• IP rating: Not available
• Measures expressed in: Millimeters
• 2D drawing (PDF): available
• Product video (MP4): available

References / Dimensions (mm)
Reference | M | A | B | C | D
00301201582 | M4 | 20.00 | 9.00 | 12.00 | 4.00
00301201583 | M5 | 20.00 | 9.00 | 12.00 | 4.00
00301201584 | M6 | 20.00 | 9.50 | 12.00 | 4.50

Characteristics / Technical specifications

• Brand: ISC Plastic Parts
• Model: LHME
• Type: Female handwheel with open screw hole
• Head: Knurled for grip
• Available thread sizes: M4, M5, M6
• Units: Millimeters
• Files: 2D drawing (PDF) and render images (PNG) available
• Product video (MP4) available
