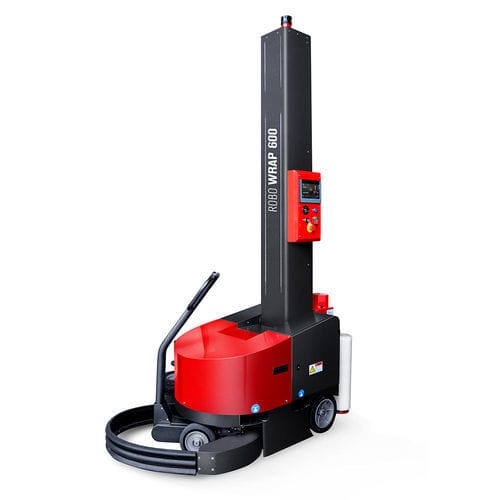

Turntable stretch wrapping machine Robo Wrap 600 A

automatedmanualrobotized

Short description
The Robo Wrap 600 A is a self-propelled, battery-powered stretch-wrapping robot designed to wrap palletised loads of any shape, size and weight using stretch film. It is fitted with a SIEMENS S7/200 PLC and a 7.2" colour touchscreen for program management and parameter setting. Film tension in version A is adjusted via a mechanical clutch set manually by the operator.

Controls and safety
Movement is electrically operated via two controls on the steering handle. A front safety bumper stops the machine immediately on collision. Emergency mushroom (CE), acoustic and flashing alarm at cycle start, rudder release system for transport and manual machine management mode are included.

5 reasons to choose this product

• Technical support available for purchase and commissioning
• Clear specification and configurable parameters for diverse pallet types
• 12-month warranty on spare parts
• Short lead time and fast readiness for storage operations
• Manufacturer with over 35 years of market presence

General characteristics
The Robo Wrap 600 A handles minimum pallet footprint L 600 x W 600 mm and usable product height up to H 2300 mm. Typical autonomy is up to approx. 150 pallets (reference L 1200 x W 800 x H 1500 mm). Full battery charging cycle: approx. 8 hours. Control allows adjustment of carriage ascent/descent speed, photocell delay, cycle counter and other parameters.

Technical features

• Reel trolley transmission via chain
• 2 x 12 V – 120 Ah AGV batteries in series
• On-board high-frequency battery charger
• Film tensioning by mechanical clutch (mechanical friction)
• Emergency mushroom (CE compliant)
• Front safety bumper for immediate stop
• Height-adjustable side feeler wheel
• 7.2" colour touchscreen control panel
• SIEMENS S7/200 PLC machine control
• Acoustic and flashing alarm at cycle start
• Emergency spare wheel for flat battery
• Rudder release system for transport
• Cycle counter
• Manual machine management mode

Parameters adjustable from the control panel

• Digital adjustment of base rotations
• Digital adjustment of top revolutions
• Digital rotation speed: 35–90 m/min
• Digital carriage ascent speed adjustment
• Digital carriage descent speed adjustment
• Number of complete cycles
• Digital film edge (overlap) adjustment

Selectable cycles from the control panel

• Up and down cycle
• Uphill-only cycle
• Reinforcement cycle at preset height (up / up-down)
• Cycle with altitude setting (altimeter) and photocell exclusion
• Up/down cycle for sheet feeder
• Up to 10 recallable cycles for different products

Film reel features

• Maximum external diameter: 280 mm
• Film reel height: 500 mm
• Film thickness: 12–35 µm
• Film reel internal diameter: 76 mm
• Maximum reel weight: 16 kg

Product information
Supply voltage: 220 V 1Ph
Power frequency: 50 / 60 Hz
Installed power: 1 kW
Machine size (L x W x H): 1610 x 1253 x 2790 mm
Machine weight: 450 kg
Carriage: mechanical brake film pull
Product reading: standard photocell
Product size: Min. 600 x 600 mm – Max. unlimited
Usable product height: H 2300 mm
Max product weight: unlimited

Technical specifications summary

• Model: Robo Wrap 600 A (self-propelled, battery-powered)
• Control: SIEMENS S7/200 PLC + 7.2" touchscreen
• Batteries: 2 x 12 V 120 Ah (AGV) with on-board HF charger
• Autonomy: up to approx. 150 pallets (reference)
• Charging time: full cycle approx. 8 hours
• Drive: electric with steering-handle controls and rudder release
• Safety: front bumper, emergency stop mushroom, acoustic/flashing alarms
• Film handling: mechanical-clutch tensioning, reel trolley chain transmission
• Film compatibility: Ø max 280 mm, height 500 mm, thickness 12–35 µm, core 76 mm
• Minimum pallet footprint: 600 x 600 mm; usable height up to 2300 mm
