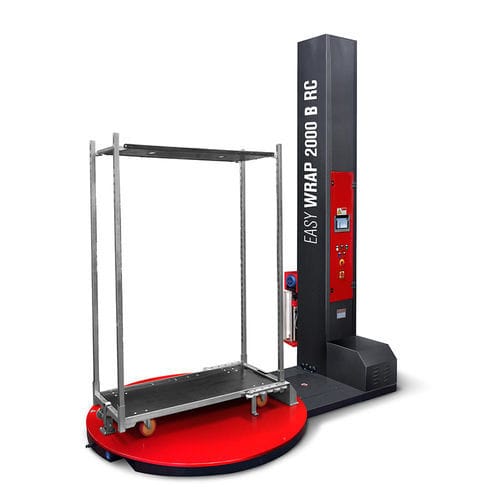

Turntable stretch wrapping machine Easy Wrap 2000 B RC

semi-automaticmanualstretch film

Overview
The Easy Wrap 2000 B RC is a semi-automatic pallet wrapping machine designed to wrap roll containers (roll containers / trolley containers) with stretch film. It features a motorized pre-stretch carriage with fixed ratios, PLC control and a 7.2" color touch display for intuitive operation. Manual film attachment and cutting are provided as standard with options for automatic cutting.

5 great reasons to choose this product

• Technical purchase support
• Competitive price-to-performance
• 12-month spare parts warranty
• Fast delivery and quick deployment
• Manufacturer experience on the market for over 35 years

Main features

• Standard turntable diameter: 1650 mm
• Max workable product footprint: L 565 x W 1350 mm; useful height up to 2200 mm
• Maximum load on turntable: 2000 kg
• PLC electrical panel with 3 wrapping programs
• Motorized pre-stretch carriage with fixed ratio 200% (gears available for 100%, 150%, 250%)
• Chain kinematics transmission for carriage and rotating table
• Inverter for progressive start and variable turntable speed (0–12 rpm)
• Photocell reading delay and cycle counter
• Brake engagement/disengagement device to ease film attachment at pallet base
• Acoustic and flashing warning at cycle start; CE-compliant emergency stop and reset
• Front and rear forklift access possible
• Manual operation mode available

Technical data

• Supply voltage: 220 V single phase
• Power frequency: 50 / 60 Hz
• Installed power: 1.25 kW
• Machine dimensions (L x W x H): 2600 x 1650 x 2400 mm
• Machine weight: 600 kg
• Turntable diameter: 1650 mm
• Turntable speed: 0–12 rpm

Adjustments from the control panel

• Digital adjustment of rotations at pallet base (cycle start and end)
• Digital adjustment of rotations at pallet top
• Digital adjustment of turntable speed (0–12 rpm)
• Digital adjustment of carriage ascent and descent speeds
• Number of complete cycles and table indexing time
• Digital film edge adjustment and film cutting parameters
• Enable/disable automatic film cutting

Selectable cycles

• Up and down cycle
• Up-only cycle
• Preset height reinforcement cycles (up or up/down)
• Cycle with altitude (altimeter) setting and photocell exclusion
• Up and down cycle for sheet feeder
• Up to 10 recallable cycles for different products

Workable product characteristics

• Max product dimensions (base): L 565 x W 1350 mm
• Useful height: H 2200 mm
• Max product weight: 2000 kg

Film reel features

• Max external reel diameter: 280 mm
• Reel height: 500 mm
• Film thickness: 12–35 µm
• Reel internal diameter: 76 mm
• Max reel weight: 16 kg

Product information / Specifications

• Model: Easy Wrap 2000 B RC
• Brand: ISGPACK
• SKU: EW2000BRC
• Supply voltage: 220 V single phase
• Power frequency: 50 / 60 Hz
• Installed power: 1.25 kW
• Machine size: L 2600 x W 1650 x H 2400 mm
• Machine weight: 600 kg
• Turntable diameter: 1650 mm
• Turntable speed: 0–12 rpm
• Max workable product: L 565 x W 1350 x H 2200 mm; max weight 2000 kg
