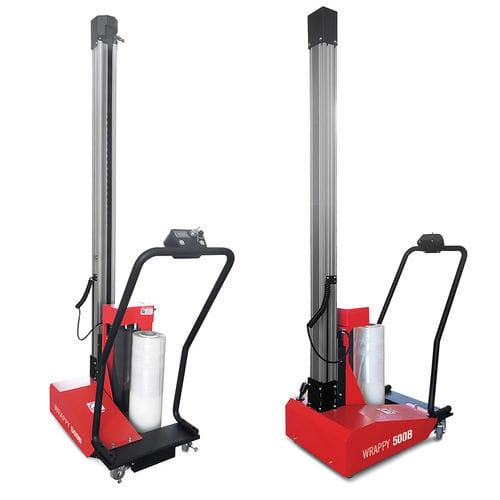

Vertical wrapping robot Wrappy 500B

manualpalletfor stretch film

Overview
The Wrappy 500B manual pallet wrapper is a compact manual wrapping robot designed for pallet wrapping in confined industrial spaces. It requires a 50 cm footprint and supports pallets up to a usable height of 2200 mm. The unit is battery powered (24V) with two rechargeable batteries and a built-in charger for cable-free operation.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support available for purchase
• Competitive cost of ownership
• 12-month warranty on spare parts
• Easy to store and deploy
• Manufacturer experience on the market for over 35 years

Description
Wrappy 500B offers high wrapping performance in narrow aisles. The motorized fixed-ratio pre-stretch reel carriage ensures uniform film application regardless of load shape or weight. Manual control of carriage ascent/descent combined with potentiometers for film tension and carriage speed allows precise adjustment of the wrapping cycle to the product. The design improves operator ergonomics and safety by eliminating manual hand wrapping.

Product information
Supply voltage: 24V battery
Machine weight: 120 kg
Carriage: Fixed-ratio motorized pre-stretch
Product size: L × W unlimited
Usable product height: H 2200 mm
Max product weight: 120 kg (specified in characteristics)
Film pre-stretch: Motorized
Film thickness: 12–35 µm

Key Features

• Frame in painted sheet steel and aluminum
• Column hinged at base for fast installation
• Reel carriage transmission via toothed belt
• Machine control via display, buttons and potentiometers
• Film tension adjustable by potentiometer on carriage
• Potentiometer to adjust carriage ascent/descent speed
• Integrated battery charger and battery status indicator
• Carriage up/down control buttons and ignition key
• Working temperature display

Characteristics of the workable product

• Max product dimensions: L ∞ x W ∞ mm
• Usable height: H 2200 mm
• Maximum product weight: 120 kg

Film reel features
Maximum external diameter: 280 mm
Internal film core diameter: 76 mm
Film height: 500 mm
Maximum reel weight: 16 kg

Characteristics / technical specifications

• Supply voltage: 24V battery (two rechargeable batteries)
• Machine weight: 120 kg
• Usable product height: H 2200 mm
• Maximum product weight (listed): 120 kg
• Film pre-stretch: Motorized (fixed-ratio)
• Film thickness supported: 12–35 µm
• Maximum film external diameter: 280 mm
• Internal film core: 76 mm
• Film height: 500 mm
• Maximum reel weight: 16 kg
• Drive: Toothed belt for reel carriage
• Structure: Painted sheet steel and aluminum
• Controls: Display, buttons, potentiometers
• Integrated battery charger; carriage controls; battery status viewer; working temperature display; ignition key
