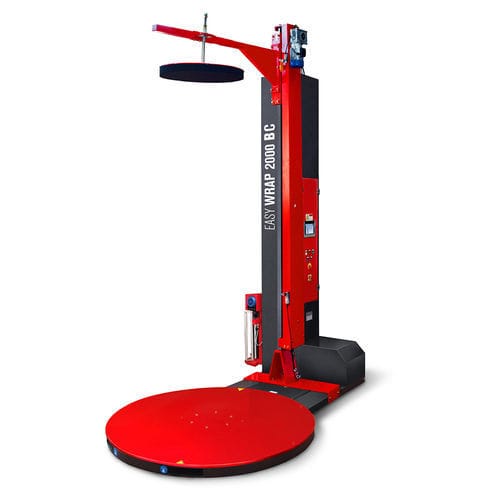

Turntable stretch wrapping machine Easy Wrap 2000 BC

semi-automaticwith top sheet applicatorstretch film

Product overview
The Easy Wrap 2000 BC is a semi-automatic stretch-wrapping machine for palletised loads. It integrates an electric stabilizer press, a fixed-ratio motorised pre-stretch carriage (replaceable gears), inverter-controlled progressive start of the turntable, selectable manual or automatic cycles and PLC management with a 7.2" colour touchscreen.

Key benefits

• Technical support for procurement
• Competitive acquisition cost
• 12-month warranty on spare parts
• Quick to install and commission
• Manufacturer present on the market for over 35 years

Main features

• Painted sheet-steel machine structure
• Electric stabilizer press for unstable loads
• Chain-driven reel carriage and rotating turntable
• PLC control and 7.2" colour touch display
• Safety stop device at carriage base (CE compliant)
• Brake engage/disengage device to ease film attachment at pallet base
• Acoustic and flashing alarm at cycle start
• Fixed-ratio motorised film pre-stretch (replaceable gears: 100%, 150%, 200%, 250%)
• Automatic film cutting at cycle end (configurable)
• Emergency mushroom and machine reset button (CE)
• Front/rear forklift access possible
• Inverter for progressive start and indexed stop of table
• Cycle counter; manual operation mode

Adjustable from the control panel

• Digital setting of base rotations (start/end of cycle)
• Digital setting of top revolutions
• Digital table rotation speed adjustment: 0–12 rpm
• Digital adjustment of carriage ascent/descent speed
• Adjustment of number of complete cycles and table indexing time
• Digital film edge adjustment and film-cut parameter settings (auto cut on/off)

Selectable cycles

• Up-and-down cycle
• Up-only cycle
• Preset height reinforcement cycle (up or up/down)
• Cycle with altitude setting and photocell exclusion
• Up-and-down cycle for sheet feeder
• Up to 10 recallable programs for different products

Workable product characteristics

• Max product footprint: L 1000 x W 1200 mm
• Useful height: up to H 2300 mm
• Maximum product weight: 2000 kg

Film reel features

• Maximum external diameter: 280 mm
• Film reel height: 500 mm
• Supported film thickness: 12–35 µm
• Film reel internal diameter: 76 mm
• Maximum reel weight: 16 kg

Product details / technical specifications
Supply voltage: 220 V 1Ph
Power frequency: 50 / 60 Hz
Installed power: 1 kW
Machine size: L 2600 x W 1750 x H 2700 mm
Machine weight: 700 kg
Turntable diameter: 1650 mm
Table rotation speed: 0–12 rpm
Model: Easy Wrap 2000 BC
