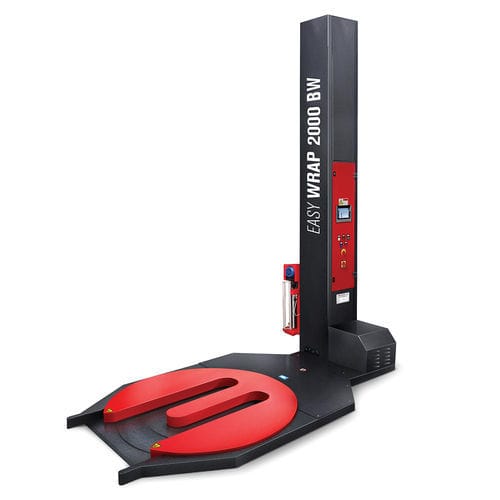

Turntable stretch wrapping machine Easy Wrap 2000 BW

semi-automaticfor pallet trucksopen

Product overview
The Easy Wrap 2000 BW is a semi-automatic open-table pallet wrapper designed to wrap palletised loads with stretch film. The open-table (turntable) layout enables direct access for pallet trucks (left- or right-hand entry configurable). The machine includes a motorised fixed-ratio pre-stretch carriage, PLC control with a 7.2" colour touchscreen and an installed power of 1.25 kW. Standard product detection is by photocell; the table supports inverter-driven progressive start and indexed stop.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support for purchase
• Good price-to-performance ratio
• 12-month warranty on spare parts
• Fast delivery lead times
• Manufacturer experience > 35 years

Main features

• Painted sheet-steel machine structure
• Chain-driven transmission for reel carriage and rotating table
• PLC management and 7.2" colour touchscreen display
• Safety stop at carriage base (CE compliant)
• Brake engage/disengage to facilitate film attachment to pallet base
• Acoustic and flashing alarm at cycle start
• Turntable Ø 1650 mm shaped for pallet truck entry
• Motorised pre-stretch carriage, fixed ratio 200% (changeable to 100%, 150%, 250% via gears)
• Automatic film cutting at cycle end (configurable)
• Emergency mushroom and reset button per CE
• Rear forklift access possible
• Inverter for progressive start and indexed stop of table
• Cycle counter and manual management mode

Adjustable digitally from the control panel

• Turns at pallet base (start/end of cycle)
• Turns at pallet top
• Table rotation speed (0–12 rpm)
• Carriage ascent/descent speed
• Number of complete cycles for job completion
• Table indexing time
• Film edge position at top of pallet
• Film cutting parameters and automatic cutting on/off
• 10 programmable recipes

Cycles selectable from the control panel

• Up and down winding
• Uphill only cycle
• Film reinforcement at preset height (up or up/down cycles)
• Cycle with height-setting (altimeter) and photocell exclusion
• Ascent/descent with sheet-feeder system
• 10 stored recipes selectable from the panel

Workable product characteristics

• Max product footprint: L 1000 x W 1200 mm
• Useful height: up to H 2200 mm
• Maximum product weight: 1200 kg

Film reel features

• Maximum external diameter: 280 mm
• Internal core diameter: 76 mm
• Maximum film height: 500 mm
• Maximum reel weight: 16 kg
• Compatible film thickness: 12–35 µm

Additional product information (key parameters)
Supply voltage: 220 V 1Ph
Power frequency: 50 / 60 Hz
Installed power: 1.25 kW
Machine dimensions: L 2925 x W 1750 x H 2400 mm
Machine weight: 600 kg
Turntable diameter: 1650 mm
Table rotation speed: 0–12 rpm
Pre-stretch: Motorised fixed-ratio carriage (200% standard; 100/150/250% available via gears)
Product reading: Standard photocell
Max product footprint: L 1000 x W 1200 mm
Usable product height: H 2200 mm
Max product weight: 1200 kg

Characteristics / technical specifications

• Model: Easy Wrap 2000 BW
• Type: Semi-automatic open-table pallet wrapper
• Table diameter: 1650 mm
• Max product footprint: 1000 x 1200 mm
• Usable product height: up to 2200 mm
• Max product weight on plate: 1200 kg
• Installed power: 1.25 kW
• Supply voltage: 220 V 1Ph
• Power frequency: 50 / 60 Hz
• Machine dimensions (L x W x H): 2925 x 1750 x 2400 mm
• Machine weight: 600 kg
• Table rotation speed: 0–12 rpm (adjustable)
• Pre-stretch system: Motorised trolley, fixed ratios (200% standard; 100/150/250% via gears)
• Film reel: max Ø 280 mm, core Ø 76 mm, height 500 mm, max weight 16 kg, thickness 12–35 µm
• Control/display: PLC with 7.2" colour touchscreen
• Standard sensors: Photocell for product reading
• Safety: CE-compliant emergency stop, carriage base safety stop, acoustic/visual alarm
• Functions: Automatic film cutting, inverter for progressive start, cycle counter, 10 stored recipes
• Brand: ISGPACK
• SKU: EW2000BW
