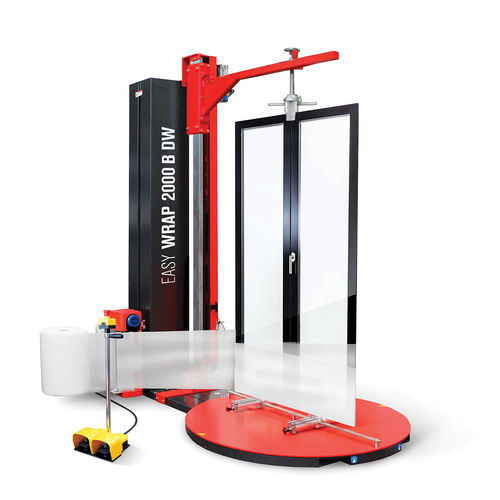

Turntable stretch wrapping machine Easy Wrap 2000 B DW

semi-automaticpalletstretch film

Product overview
Easy Wrap 2000 B DW is a semi-automatic machine for vertical wrapping of doors, windows, shower enclosures and similar large vertical items. It features a fixed-ratio motorized film pre-stretch, an electric stabilizing press controlled by a dual-function foot pedal, PLC management and a 7.2" colour touch screen. Locking guides are positioned at the top and base of the rotating plate; removing the lower locking system allows use as a conventional pallet wrapper.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support available for purchase
• Good price-to-performance ratio
• 12-month warranty on spare parts
• Short time to store/quick readiness for use
• Manufacturer with over 35 years on the market

General characteristics
The machine has a rotating plate diameter of 1650 mm (standard) and processes products up to L 1650 x W 50/200 x H 2200 mm. Maximum load on the plate for locking is 100 kg. Table start is progressive via inverter. Up to three different wrapping programs are selectable from the touch display; additional parameters (carriage ascent/descent speed, photocell delay, cycle counter, number of rotations) are adjustable.

Technical features

• Painted sheet-steel machine structure
• Electric stabilizer press with dual-function foot pedal (raise/lower)
• Transmission of reel trolley and rotating plate via chain kinematics
• PLC control and 7.2" colour touch screen
• Safety stop device at trolley base (CE compliance)
• Brake engagement/disengagement device to facilitate film attachment at base
• Adjustable upper/lower product locking guides (100 kg)
• Fixed-ratio motorized film pre-stretch: nominal 200% (change gears for 100%, 150%, 250%)
• Automatic film cutting at end of cycle
• Emergency mushroom and CE reset button
• Front/rear forklift access
• Inverter for progressive start and indexed stop of table
• Cycle counter and manual operation mode

Adjustable from the control panel

• Digital adjustment of rotations at table base (start)
• Digital adjustment of revolutions at table top
• Digital adjustment of rotations at table base (end)
• Digital adjustment of table rotation speed 0–12 rpm
• Digital adjustment of carriage ascent speed
• Digital adjustment of carriage descent speed
• Adjustment of number of complete cycles
• Table indexing time adjustment
• Digital film edge adjustment
• Film cutting parameter adjustment and inclusion/exclusion of automatic cutting

Cycles selectable from the control panel

• Up and down cycle
• Uphill only cycle
• Preset height reinforcement cycle (up cycle, up/down cycle)
• Cycle with altitude setting (altimeter) and photocell reading exclusion
• Up and down cycle for sheet feeder
• Up to 10 recallable cycle presets for different products

Characteristics of workable products

• Max product dimensions: L 1650 x W 50/200 mm
• Useful height: H 2200 mm
• Maximum product weight (locking system): 100 kg

Film reel features

• Maximum external diameter: 280 mm
• Film reel height: 500 mm
• Film thickness: 12–35 µm
• Film reel internal diameter: 76 mm
• Maximum reel weight: 16 kg

Product information (technical table)
Supply voltage: 220 V — 1Ph
Installed power: 1.25 kW
Power frequency: 50 / 60 Hz
Machine size: L 2620 x W 1650 x H 2700 mm
Machine weight: 800 kg
Plate diameter: 1650 mm
Table rotation speed: 0–12 rpm

Characteristics / technical specifications

• Model: Easy Wrap 2000 B DW
• Brand: ISGPACK
• Rotating plate diameter: 1650 mm
• Max workable product dims: L 1650 x W 50/200 x H 2200 mm
• Max product weight (locking system): 100 kg
• Machine size (LxWxH): 2620 x 1650 x 2700 mm
• Machine weight: 800 kg
• Power supply: 220 V - single phase
• Installed power: 1.25 kW
• Table rotation speed: adjustable 0–12 rpm
• Fixed-ratio motorized film pre-stretch (200% nominal; gears for 100%, 150%, 250%)
• Automatic film cutting at cycle end
• PLC control and 7.2" colour touch display
