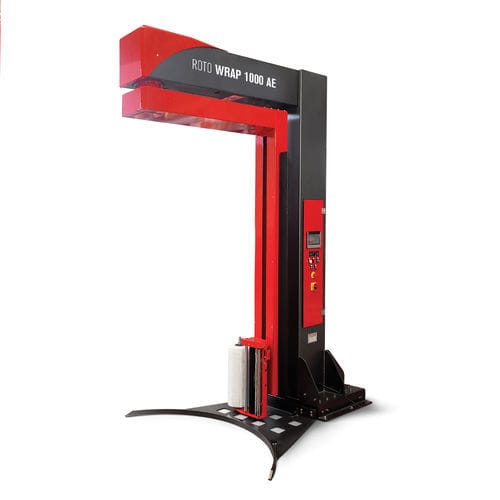

Rotary arm stretch wrapper Roto Wrap 1000 AE

semi-automaticwith mechanic brakingstretch film

Description
The Roto Wrap 1000 AE is a semi-automatic rotating-arm pallet wrapper engineered for safe, efficient wrapping of unstable and heavy loads. Counterweighted and designed for floor anchoring, it combines an electromagnetic-clutch pre-stretch carriage, inverter-controlled smooth arm start/stop and a self-braking motor with front bumper for immediate stop on contact. Control is via PLC and a 7.2" colour touchscreen for quick parameter setup and cycle management.

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical support available for procurement
• Competitive total cost of ownership
• 12-month warranty on spare parts
• Short lead times and fast delivery
• Manufacturer experience: over 35 years on the market

General characteristics

• Electromagnetic-clutch pre-stretch carriage with tension adjustable from the control panel
• Processes pallets up to L 1200 x W 1200 x H 2200 mm
• Supports unlimited load weight (no turntable weight limit)
• Adjustable number of rotations at pallet base and top
• Smooth, inverter-adjustable start/stop of the rotating arm
• Machine management via PLC and 7.2" colour touchscreen

Technical characteristics

• Painted sheet-steel machine structure
• Reel trolley transmission via toothed-belt kinematics
• Internal rotation diameter: Ø 1780 mm
• Safety stop via front bumper compliant with CE
• Brake engagement/disengagement to facilitate film attachment at pallet base
• Acoustic alarm at cycle start
• Film tension adjustable by electromagnetic clutch from the panel
• Emergency mushroom and reset button (CE compliant)
• Inverter for progressive start and indexed stop of the rotating arm
• Cycle counter and manual operation mode

Parameters adjustable from the control panel

• Digital adjustment of rotations at pallet base
• Digital adjustment of rotations at pallet top
• Arm rotation speed adjustment (0–10 rpm via inverter)
• Carriage ascent/descent speed adjustment
• Number of complete cycles
• Rotating-arm indexing time
• Digital film edge (overlap) adjustment

Cycles selectable from the control panel

• Up and down cycle
• Only uphill
• Ascent and descent for sheet feeder
• Up to 10 saved cycles recallable from the panel for different products

Film reel features

• Maximum external reel diameter: 280 mm
• Internal core diameter: 76 mm
• Film height: 500 mm
• Maximum reel weight: 16 kg
• Film thickness: 12–35 µm

Product information
Supply voltage: 220 V 1Ph
Installed power: 1 kW
Power frequency: 50 / 60 Hz
Machine dimensions: L 3260 x W 1780 x H 2850 mm
Machine weight: 450 kg
Arm rotation speed: 15 rpm (adjustable 0–10 rpm)
Carriage: electromagnetic-clutch pre-stretch
Product footprint supported: L 1200 x W 1200 mm
Usable product height: H 2200 mm
Max product weight: unlimited

Model / technical specifications

• Model: Roto Wrap 1000 AE
• Power supply: 220 V single-phase, 50/60 Hz
• Installed power: 1 kW
• Internal rotation diameter: Ø 1780 mm
• Max product footprint: 1200 x 1200 mm
• Max usable height: 2200 mm
• Machine weight: 450 kg
