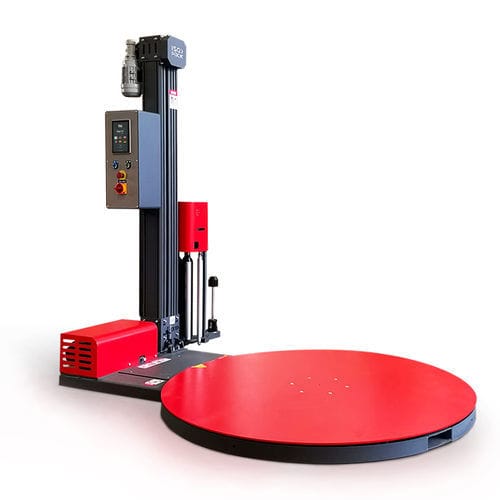

Turntable stretch wrapping machine E-WRAP 1000B

semi-automaticfor industrial usestretch film

Product overview
The E-Wrap 1000B is a semi‑automatic rotary‑table stretch film wrapping machine featuring an advanced electronic control system with a dedicated board and a 7" colour touchscreen. It includes a motorized film pre‑stretch trolley with fixed ratios, 6 configurable recipes, real‑time I/O diagnostics and an integrated log of statistics, times and processed pallets.

Key benefits

• Motorized film pre‑stretch carriage with fixed ratios for consistent film tension and uniform pallet stabilization
• Intuitive 7" colour touch display with recipe management and guided diagnostics
• Six customizable working recipes to cover standard applications
• Integrated electronic board monitoring phases and reporting anomalies in real time
• Designed for industrial use with 12‑month warranty on spare parts

Touch display functionality
From the 7" graphic colour touchscreen the operator can configure and store wrapping parameters and access administrative, statistical and technical diagnostic sections. Parameters include number of turns at top/bottom, carriage ascent/descent cycles, turntable speed, carriage speed and photocell reading time for film unloading. The display provides guided troubleshooting, alarm history and maintenance archive.

Product information (key values)
Machine size: L 2300 x W 1500 x H 2680 mm
Machine weight: 450 kg
Plate diameter: 1500 mm
Table rotation speed: 0 – 12 rpm
Supply voltage: 220 V single‑phase
Power frequency: 50 / 60 Hz
Installed power: 1.2 kW
Film pre‑stretch: Motorized (fixed ratios)
Maximum reel dimensions: H 500 mm Ø 280 mm
Film thickness: 12 – 35 µm

Technical features

• Machine structure in steel and aluminium
• Extruded aluminium column hinged to the base for quick installation
• Trolley driven by double‑chain kinematics
• Machine managed by an integrated board controlled via 7" colour touch display
• Safety stop device at base of trolley (CE compliant)
• Three‑colour alarm indicator at top of column
• Guided troubleshooting of machine errors from touch screen
• Start, stop or reset from display or physical buttons
• Emergency mushroom and machine reset button for CE regulations
• System for progressive start and indexed stop of the table
• Statistics, times and number of pallets processed
• Manual working mode available
• Resuming winding after error reset or bobbin change
• Configuration of 6 working recipes

Control panel settings (examples)

• Number of winding cycles
• Table rotation speed 0 to 12 rpm
• Film bleed adjustments
• Film pre‑stretch adjustment
• Number of film turns at base and top of pallet
• Carriage up/down speed independent from 0 to 5.9 m/min

Workable product characteristics

• Max product dimensions (standard table 1500 mm): L 800 x W 1200 mm
• Useful winding height: H 2200 mm (standard column)
• Maximum product weight: 1500 kg

Optional items

• 1650 mm table (for 1000 x 1200 mm pallets)
• Access ramp (for 1500 mm table)
• Access ramp (for 1650 mm table)
• Increased column for useful height 2600 mm
• Photocell for reading black products

Technical specifications (summary)

• Model: E‑Wrap 1000B
• Machine size: L 2300 x W 1500 x H 2680 mm
• Machine weight: 450 kg
• Standard plate diameter: 1500 mm (optional 1650 mm)
• Maximum table load: 1500 kg
• Table rotation speed: 0 – 12 rpm
• Supply voltage: 220 V single‑phase
• Power frequency: 50 / 60 Hz
• Installed power: 1.2 kW
• Carriage speed (up/down): 0 – 5.9 m/min
• Film pre‑stretch: Motorized (fixed ratios)
• Maximum reel external Ø: 280 mm; reel height: 500 mm; core: 76 mm; max reel weight: 16 kg
• Acceptable film thickness: 12 – 35 µm
