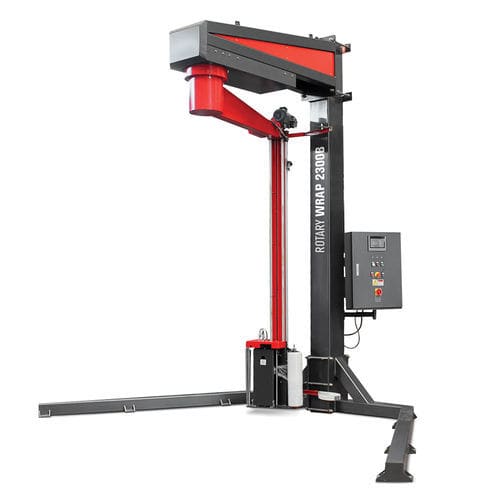

Rotary arm stretch wrapper Rotary Wrap 2300 B

semi-automaticfor large workpiecesindustrial

Overview
The Rotary Wrap 2300 B is a semi-automatic rotating-arm pallet stretch wrapper designed for wrapping and stabilising heavy, bulky or fragile loads while the pallet remains stationary on the floor. The unit features a motorized fixed-ratio pre-stretch carriage, adjustable arm speed up to 15 rpm, drive wheel for smooth starts/stops and a counterweighted structure for floor fixing and long-term stability.

Key benefits

• Wrap heavy or unstable loads without moving the pallet
• Smooth, controlled arm start/stop with inverter and drive wheel
• Sensor-equipped front bumper that immediately stops rotation on contact
• PLC control with 7.2" colour touchscreen for parameter setting
• Motorized pre-stretch with selectable fixed ratios

5 GREAT REASONS TO CHOOSE THIS PRODUCT

• Technical purchasing support
• Competitive total cost of ownership
• 12-month spare-parts warranty
• Fast delivery times
• Manufacturer with over 35 years on the market

Technical data (summary)
Supply voltage: 220 V single phase
Power frequency: 50 / 60 Hz
Installed power: 1.25 kW
Machine size: L 4000 x W 2000 x H 3120 mm
Machine weight: 1100 kg
Arm rotation speed: up to 15 rpm (15 m/min indicated)
Rotation diameter: 2000 mm
Carriage: fixed-ratio motorized pre-stretch (200% default; 100%, 150%, 250% via gear change)
Product reading: standard photocell
Product footprint: L 1200 x W 1200 mm
Usable product height: up to H 2400 mm
Max product weight: unlimited

General characteristics

• Painted sheet-steel machine structure
• Coil carriage transmission by chain kinematics
• Counterweighted design for floor fixation
• PLC control and 7.2" colour touchscreen
• Safety bumper with sensors and emergency stop mushroom (CE compliant)
• Brake engagement/disengagement device to aid film attachment to pallet base
• Acoustic warning at cycle start
• Inverter for progressive start and indexed stop of the rotating arm
• Cycle counter and manual operation mode

Parameters adjustable from the control panel

• Digital setting of base wrapping turns
• Digital setting of top wrapping turns
• Arm rotation speed 0–15 rpm
• Carriage ascent/descent speed
• Number of complete cycles
• Rotating-arm indexing time
• Digital film-edge adjustment

Workable product characteristics

• Max product footprint: L 1200 x W 1200 mm
• Usable product height: H 2400 mm
• Max product weight: unlimited (pallet remains stationary)

Film reel features

• Maximum external diameter: 280 mm
• Internal core diameter: 76 mm
• Film height: 500 mm
• Maximum reel weight: 16 kg
• Film thickness: 12–35 µm

Characteristics / technical specifications

• Model: Rotary Wrap 2300 B
• Type: Rotating-arm pallet stretch wrapper (semi-automatic)
• Supply voltage: 220 V single phase
• Frequency: 50 / 60 Hz
• Installed power: 1.25 kW
• Arm rotation speed: adjustable up to 15 rpm
• Rotation diameter: 2000 mm
• Machine dimensions: L 4000 x W 2000 x H 3120 mm
• Machine weight: 1100 kg
• Usable product height: up to 2400 mm
• Max product footprint: L 1200 x W 1200 mm
• Pre-stretch carriage: motorized fixed ratios (200% default; 100%, 150%, 250% options)
• Control: PLC with 7.2" colour touchscreen
• Product detection: standard photocell (laser kits optional)
• Safety: bumper stop, emergency mushroom, machine reset button (CE compliant)
