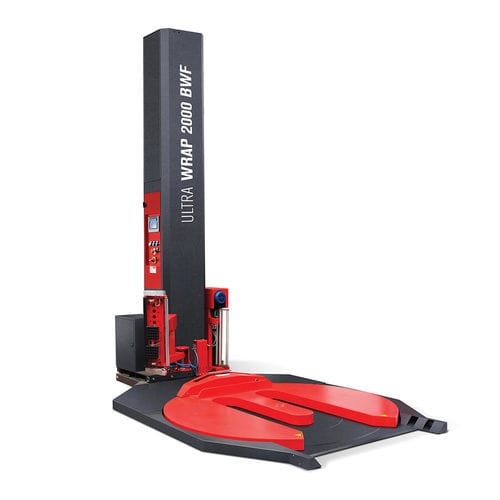

Turntable stretch wrapping machine Ultra Wrap 2000 BWF

automaticfully-automaticwith mechanic braking

Overview
The Ultra Wrap 2000 BWF is an open-table automatic pallet wrapper designed for pallet truck entry and fully automatic, operator-free wrapping. It features a motorized pre-stretch trolley with fixed ratios (standard 200%), a turntable Ø1650 mm and an adjustable table rotation speed up to 12 rpm. Installed electrical power: 1.25 kW.

Main functions and advantages

• Open-table configuration for direct pallet truck access, facilitating integration in production and warehouse lines
• Clamping, cutting and tail-welding unit that hooks, cuts and welds the film for reliable tail sealing
• Motorized pre-stretch trolley with fixed ratios and interchangeable gear options (100%, 150%, 200%, 250%)
• PLC control and 7.2-inch colour touch screen for cycle programming and parameter recall
• Adjustable wrapping parameters (table speed, carriage speeds, number of cycles) to match product and load stability requirements
• Safety and user aids: safety stop at trolley base, brake engagement/disengagement device, acoustic and flashing alarm at cycle start

Technical characteristics

• Turntable diameter (standard): 1650 mm, shaped for pallet truck entry
• Processable pallet footprint: L 1000 x W 1200 mm; usable height H 2500 mm (specifications may indicate up to 2600 mm in other sections)
• Maximum plate load: 1200 kg
• Table rotation speed: adjustable, up to 12 rpm
• Carriage ascent/descent speed: 1.4 / 4 m/min
• Machine structure in painted sheet steel; transmission by chain kinematics
• Film cutting and welding with temperature-controlled welding unit; winding cycle activatable by radio control
• Inverter for progressive start and indexed stop of the table; machine reset button for CE compliance

Adjustable from the touch control panel

• Digital adjustment of base and top revolutions
• Digital adjustment of table rotation speed (0–10 rpm configurable)
• Carriage height and digital adjustment of ascent/descent speeds
• Adjustment of number of complete cycles and recall of up to 10 stored cycles
• Position adjustment and table slowdown at end of cycle
• Digital film edge and film dispensing speed adjustment
• Adjustment of film welding and cutting parameters and tail elimination blow time
• Fifth wheel speed adjustment and I/O for self-diagnostics

Selectable cycles

• Up and down cycle
• Up and down cycle for sheet feeder
• Up and down cycle with reinforcement
• Up to 10 cycles recallable from the control panel for different products

Workable product characteristics

• Max product footprint: L 1000 x W 1200 mm
• Usable height: H 2500 mm
• Maximum product weight: 1200 kg

Film reel features

• Maximum external reel diameter: 280 mm
• Internal film core diameter: 76 mm
• Film height: 500 mm
• Maximum reel weight: 16 kg
• Film thickness range: 12–35 µm

Certifications, service and technical data

• Supply voltage: 220 V single-phase; frequency 50/60 Hz; installed power 1.25 kW
• Air pressure required: 0.49–0.63 MPa
• Machine dimensions: L 2950 x W 1650 x H 2700 mm; weight: 800 kg
• Standard product detection: photocell (options for dark product or laser available as accessories)
• CE-compliant safety devices; 12-month warranty on spare parts and technical support available
