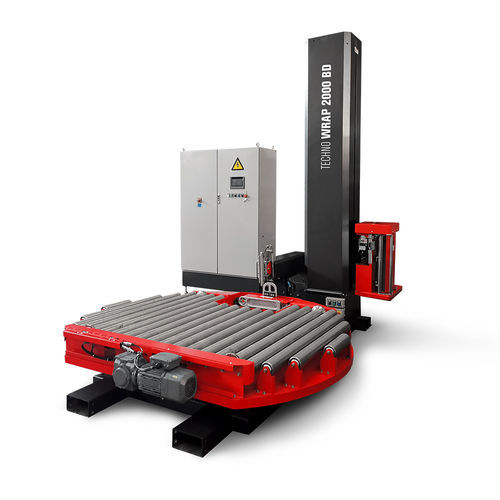

Turntable stretch wrapper Techno Wrap 2000 BD

automaticwith rollerswith motorized roller conveyor

Overview
The Techno Wrap 2000 BD is an automatic inline pallet wrapping machine designed for continuous production lines and automated pallet handling. It is equipped with a SIEMENS PLC and a 7.2" color touchscreen and features a pneumatic contrast welding unit, automatic film feeding, automatic cutting and welding, photoelectric sensors for entry/exit and pallet height detection, and a rotating slewing ring with motorized rollers for pallet advancement. Up to 15 wrapping programs can be stored; a transit mode allows line integration without executing the wrapping cycle.

5 reasons to choose this machine

• Dedicated technical support for purchase and integration
• Designed for inline automated packaging operations
• 12-month spare parts warranty
• Fast commissioning and program memorization (15 programs)
• Proven manufacturer experience on the market for over 35 years

Product description
The machine management is handled by a SIEMENS PLC with a 7.2" color touch panel providing self-diagnostics and manual overrides. Core automated functions include motorized pre-stretch film carriage with end-of-cycle film creasing, pneumatic film hooking with contrast welding (welds onto a contrast plate), automatic film cut and weld, and automatic table advancement via motorized rollers. Photoelectric sensors detect pallet presence and height. Perimeter protections (interlocked doors, safety barriers) are available for CE-compliant installations.

Technical data
Supply voltage: 380 V, 3-phase
Power frequency: 50/60 Hz
Installed power: 1.6 kW
Machine dimensions: L 2900 x W 2000 x H 3150 mm
Machine weight: 1400 kg
Turntable diameter: 2000 mm
Table rotation speed: 0–10 rpm
Standard roller conveyor height: 460 mm (other heights on request)
Max product dimensions on plate: L 1000 x W 1200 mm
Usable product height: H 2200 mm
Max product weight: 2000 kg

Key features

• Painted sheet-steel machine structure
• Coil carriage transmission with chain kinematics
• Fixed-ratio motorized pre-stretch carriage
• Pneumatic film hooking, cutting and contrast welding system
• PLC control with color touchscreen and self-diagnostics
• Acoustic and visual alarm at cycle start; CE-compliant emergency stop and reset
• Inverter for progressive start and indexed stop of the table
• Schneider contactors and push-buttons; Pepperl+Fuchs sensors
• Manual and automatic operation modes; unattended operation capability

Parameters adjustable from the control panel

• Base rotations at cycle start and top rotations at cycle end
• Table rotation speed (0–10 rpm)
• Carriage ascent/descent speed
• Number of complete cycles
• Position adjustment and table slowdown at cycle end
• Digital film edge adjustment
• Film welding and cutting parameter adjustment
• Tail elimination blow time and film dispensing speed
• Adjustment of fifth wheel speed and I/O for self-diagnostics

Workable product characteristics

• Max product dimensions on plate: L 1000 x W 1200 mm
• Usable height: H 2200 mm
• Maximum supported product weight: 2000 kg

Film reel features

• Maximum external diameter: 280 mm
• Core diameter: 76 mm
• Film height: 500 mm
• Maximum reel weight: 16 kg
• Film thickness accepted: 12–35 µm

Specifications / technical details

• Model: Techno Wrap 2000 BD
• PLC: SIEMENS with 7.2" color touchscreen
• Memory: up to 15 wrapping programs
• Turntable design: motorized roller-type rotating table Ø 2000 mm
• Power: 1.6 kW · 380 V 3~ · 50/60 Hz
• Machine weight and dimensions as above; standard conveyor height 460 mm
