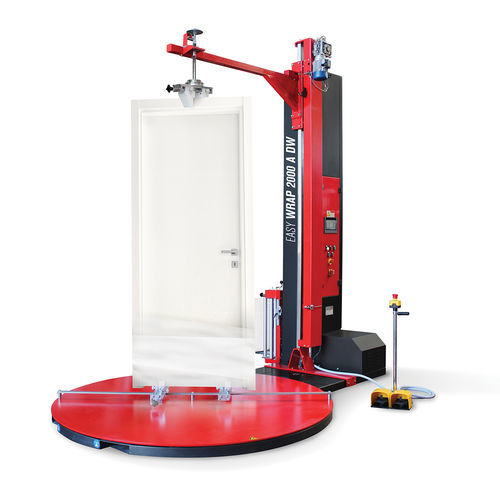

Vertical stretch wrapping machine Easy Wrap 2000A DW

semi-automaticwith mechanic brakingfor windows and doors

Overview
The Easy Wrap 2000A DW is a semi-automatic vertical pallet wrapping machine for the protection and handling of windows, doors, shower enclosures and similar elongated items. It supports combined use of stretch film and foam/bubble wrap and features a mechanical clutch tensioning system on the reel carriage, PLC control and a 7.2" colour touchscreen. Installed power: 1 kW.

5 key reasons to consider this machine

• Designed specifically for vertical wrapping of window and door units
• Double-reel trolley for combined foam/bubble + stretch-film protection
• Programmable PLC with 7.2" touchscreen for repeatable cycles
• Electric stabilizing press with dual-function foot pedal for safe fixation
• CE-compliant safety devices and forklift access front/rear

Application and usage
Intended for vertical wrapping of single products or small stacks using foam/bubble wrap in combination with stretch film. The electric stabilizer press secures the item during wrapping and is operated by a dual-function foot pedal (raise/lower). Upper and lower clamping devices secure products on the rotating plate; the lower clamp is adjustable for product width and thickness. Removing the clamping system converts the machine to a conventional pallet wrapper.

New double-reel mechanical trolley
Mechanical double-reel trolley allows independent application of foam/bubble wrap and stretch film, enabling one-operator wrapping of lightweight items such as doors. Option available for a motorized pre-stretch carriage in other variants.

Key features and options

• Standard plate diameter: 1650 mm
• Processing range: product length up to 1650 mm, width 50–200 mm, usable height up to 2200 mm
• Maximum product weight: 100 kg
• Mechanical clutch film tensioning on reel carriage (motorized pre-stretch optional)
• PLC management and 7.2" colour touchscreen, up to 10 programmable recallable cycles
• Electric stabilizer press; chain-driven reel trolley and rotating plate
• Safety stop at trolley base, emergency stop mushroom, CE devices
• Brake engagement/disengagement device to facilitate film attachment
• Front/rear forklift access and inverter for progressive start/indexed stop
• Cycle counter and manual operation mode

Adjustments available from the control panel

• Digital adjustment of revolutions at base (start/end) and top
• Table rotation speed adjustment (0–12 rpm)
• Carriage ascent/descent speed adjustment
• Number of complete cycles and table indexing time
• Digital film edge adjustment and other fine parameters

Selectable cycles (from control panel)

• Up and down cycle
• Uphill only cycle
• Preset height reinforcement cycle (up / up+down)
• Cycle with altitude setting (altimeter) and photocell exclusion
• Up and down cycle for sheet feeder; up to 10 recallable cycles

Characteristics of workable product

• Max product dimensions: L 1650 x W 50–200 mm
• Usable height: H 2200 mm
• Maximum product weight: 100 kg

Film reel features

• Maximum external diameter: 280 mm
• Film reel height: 500 mm
• Film thickness: 12–35 µm
• Film reel internal diameter: 76 mm
• Maximum reel weight: 16 kg

Product information (technical table)
Supply voltage: 220 V single-phase
Power frequency: 50/60 Hz
Installed power: 1 kW
Machine size: L 2650 x W 1650 x H 2700 mm
Machine weight: 800 kg
Plate diameter: 1650 mm
Table rotation speed: 0–12 rpm
Product reading: standard photocell
Product size (max): L 1650 x W 50–200 mm
Usable product height: H 2200 mm
Max product weight: 100 kg

Technical specifications

• Model: Easy Wrap 2000A DW
• Supply: 220 V single-phase, 50/60 Hz
• Installed power: 1 kW
• Machine dimensions (L x W x H): 2650 x 1650 x 2700 mm
• Machine weight: 800 kg
• Plate diameter: 1650 mm
• Table rotation speed: 0–12 rpm
• Film tensioning: mechanical clutch (manual adjustment)
• Control: PLC + 7.2" colour touchscreen, multiple programmable cycles
• Safety and CE compliance devices included
