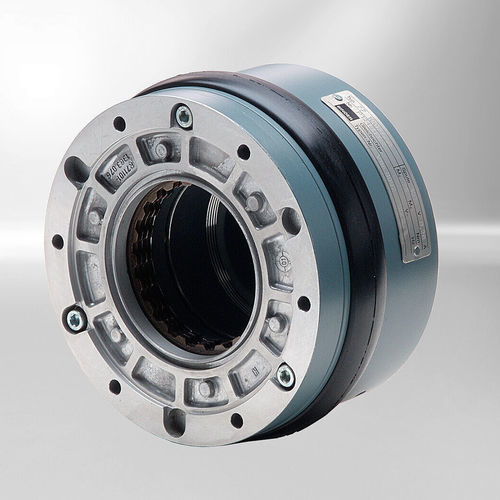

Disc brake unit Classic Linespringspring activatedmanual release
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- electromagnetic, electromagnetic release, spring, spring activated, manual release
- Other characteristics
- emergency, for machine tools, for hoists, for motors, for unwinder, tension control, DC voltage, flange-mounted, shaft-mounted
- Torque
Max.: 800 Nm
(590.049719 ft.lb)Min.: 17 Nm
(12.538557 ft.lb)- Rotational speed
Max.: 5,400 rpm
(33,929.2007 rad.min-1)Min.: 2,500 rpm
(15,707.9633 rad.min-1)- Power
Max.: 230 W
Min.: 23 W
Description
Overview
The Classic Line is an electromagnetically released spring-applied brake for robust industrial drives. It brakes by spring force when de-energized and is released when DC voltage is applied. Thanks to its closed, ready-to-install design, it is especially suitable for applications requiring reliable braking and adjustable braking torque.
Advantages
Application Areas
Key Technical Data
The Classic Line is an electromagnetically released spring-applied brake for robust industrial drives. It brakes by spring force when de-energized and is released when DC voltage is applied. Thanks to its closed, ready-to-install design, it is especially suitable for applications requiring reliable braking and adjustable braking torque.
Advantages
- Closed, ready-to-install brake system
- Continuously and centrally adjustable braking torque
- Electromagnetic release with DC voltage
- Nearly residual-torque-free operation when released
- No axial load on the shaft to be braked
- Optionally available with integrated rectifier or manual release
- Provision for mounting tachometers or rotary encoders
Application Areas
- Machine tools
- Geared motors
- Hoists and crane systems
- Printing and paper processing
- Industrial drive systems with holding or braking function
Key Technical Data
- Model: Classic Line
- Brake type: electromagnetically released spring-applied brake
- Design: single-disc and multi-disc brake
- Nominal torque range: 17 Nm to 800 Nm
- Voltage: DC 24 V, DC 102 V, DC 178 V
- Protection rating: IP54, IP55
