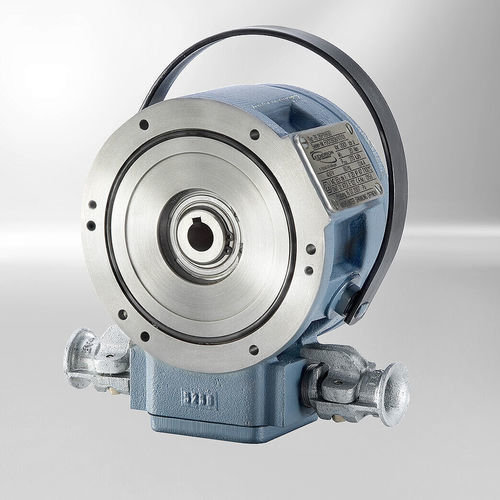

Disc brake unit EEX Line

electromechanicalspringspring activated

Overview
The EEX Line is an electromagnetically released spring-applied single-disc brake for potentially explosive atmospheres. It brakes in the de-energized state and, thanks to its flameproof enclosure, is especially suitable for ATEX applications and firedamp-risk areas.

Advantages

• Explosion, firedamp and dust protection according to ATEX
• Flameproof enclosure prevents the transmission of an internal explosion
• Varistor protection against voltage peaks
• Thermal protection with four thermal switches
• Microswitch prevents start-up against a brake that has not been released
• Seawater-resistant version
• Optional manual release

Application Areas

• Potentially explosive industrial environments
• ATEX areas
• Firedamp-risk mining applications
• Dust- and explosion-hazardous systems
• Seawater or corrosion-exposed environments

Key Technical Data

• Nominal torque range: 10 Nm – 270 Nm
• Voltage: 205 V DC / 230 V AC, 50 Hz
• Protection rating: IP 67
• Ambient temperature range: -20 °C to +40 °C
