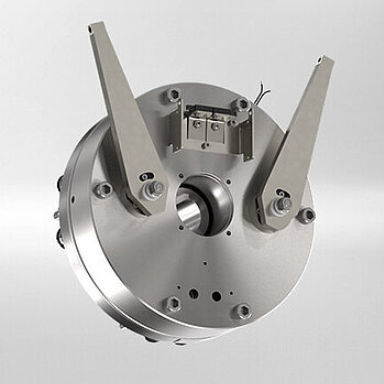

Disc brake unit INTORQ BFK464

springspring activatedmanual release

Overview
The INTORQ BFK464-R is a compact, electromagnetically released dual-circuit spring-applied brake for safety-relevant elevator applications. With two independently operating coil circuits, it provides high redundancy and is especially suitable where high and stable braking torque is required in a limited installation space.

Advantages

• Two independent coil circuits for high operational safety
• Compact design with high braking torque
• Stable braking torque even at high mounting surface temperatures
• High switching dynamics
• Low-noise operation thanks to maintenance-free damping
• Function monitoring via microswitch, mechanical or inductive
• Mounting of common rotary encoders possible
• Type-tested according to EN 81-20 / EN 81-50

Application Areas

• Elevator technology
• Passenger elevators
• Drive systems with redundancy requirements
• Safety-relevant holding and braking functions
• Compact motor and gearbox applications in elevator systems

Key Technical Data

• Model: INTORQ BFK464-R
• Brake type: dual-circuit spring-applied brake
• Sizes: 7
• Nominal torque range: 2 × 1,200 Nm
• Brake circuits: two independent coil circuits
• Function monitoring: microswitch, mechanical or inductive
• Shaft connection: direct gearing or hub
• Standards: EN 81-20 / EN 81-50
