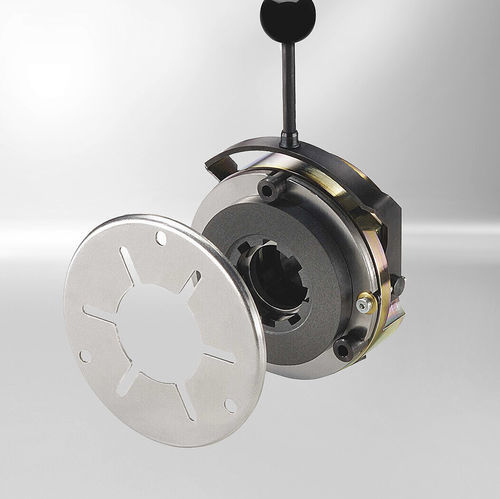

Disc brake Vario Line

frictionspringmanual release

Overview
The Vario Line is an electromagnetically released spring-applied brake for IEC motors. It generates braking torque by spring force when de-energized and can be released either electrically or manually with an optional manual release. Thanks to its modular design, it can be adapted flexibly to different drive requirements.

Advantages

• Electromagnetically released
• Brakes safely when de-energized
• Continuously adjustable central torque setting
• No air gap adjustment required
• Modular design for flexible configuration
• Mounting dimensions matched to IEC motors

Application Areas

• IEC motors
• Industrial drive systems
• Electric motors with holding or braking function
• Applications requiring adjustable braking torque
• Modular machine and plant engineering solutions

Key Technical Data

• Model: Vario Line
• Brake type: electromagnetically released spring-applied brake
• Nominal torque range: 1 Nm to 600 Nm
• Voltage: DC 24, 102, 178, 205 V
• Protection rating: IP55
