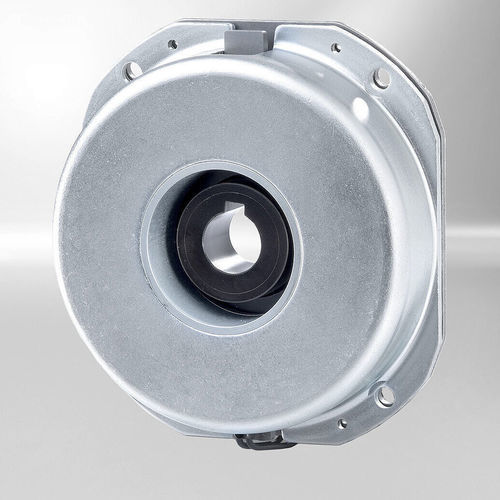

Disc brake unit Compact Line

frictionspringelectromagnetic release

Overview
The Compact Line is a compact, electromagnetically released spring-applied single-disc brake for applications with limited installation space. It brakes when de-energized and is released when DC voltage is applied. Thanks to its installation-friendly design, it is especially suitable for simple motor integration.

Advantages

• Compact design for confined installation spaces
• Easy installation
• Very good price-performance ratio
• No air gap adjustment required
• Available with or without integrated rectifier
• No axial force on the shaft to be braked

Application Areas

• Small motors and drives
• Electric motors with limited installation space
• Industrial drive systems
• Machinery and plant engineering
• Applications with simple holding or braking function

Key Technical Data

• Product type: spring-applied single-disc brake
• Function: brakes de-energized, electrically released
• Nominal torque range: 1 Nm
• Voltage: DC 24 V, DC 102 V, DC 178 V, DC 230 V
• Protection rating: IP00, IP54
