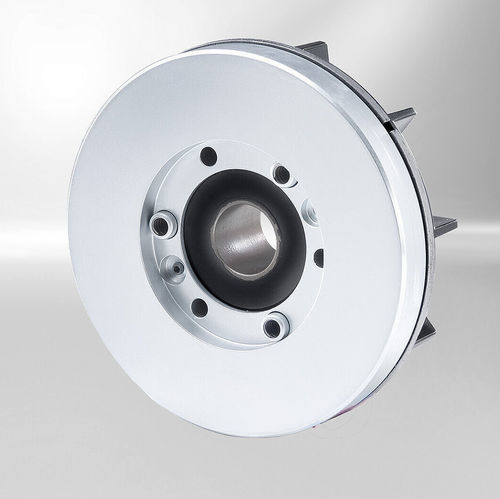

Disc brake unit Slim Line

frictionspringelectromagnetic release

OverviewThe Slim Line is a particularly flat, electromagnetically released spring-applied brake for low braking torques. It brakes when de-energized and is especially suitable for applications with limited installation space where the brake disc can also be used as a motor fan.AdvantagesVery flat designElectrically releasedBrakes when de-energizedResidual-torque-free release possibleAny mounting position possibleAvailable with or without integrated rectifierBrake disc can be used as a motor fanApplication AreasSmall motors and drivesApplications with limited installation spaceElectric motors with fan functionIndustrial drive solutions with low braking torquesHigh-speed doorsKey Technical DataProduct type: spring-applied single-face brakeFunction: brakes de-energized, electrically releasedNominal torque range: 0.25 Nm to 3 NmVoltage: DC 24 V, DC 102 V, 1 AC 230 V, 50/60 HzProtection rating: IP54
