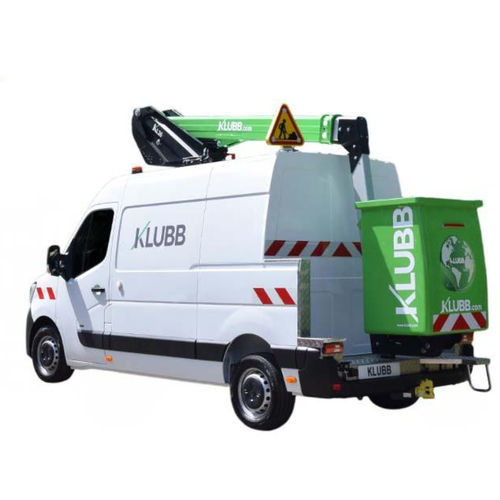

Van-mounted telescopic boom lift KL26

electricbattery-poweredfully-electric

Product overview
The KL26 is a van-mounted telescopic aerial platform providing up to 11.80 m working height and 6.80 m outreach. It is designed for maintenance tasks in urban contexts such as telecom networks and street lighting. The unit is 100% electric, enabling quiet driving and safe work at height with the vehicle engine switched off, reducing local emissions during operations.

Capacity & vehicle integration

• Model: KL26
• Maximum capacity: 120 kg (1 operator), no outriggers required
• Example chassis: RENAULT MASTER L2H2 E-TECH

Applications and vehicle layout

• Suitable for telecom maintenance and street lighting in urban environments
• High loading capacity on the Master E-TECH chassis; configurable with storage modules and adapted flooring/walls to optimise usable space for tools and equipment
• Rear doors can be replaced by a curtain to facilitate loading and unloading of equipment
• Provision for installation of luminous signage for roadwork (retro-reflective strips, flashing light, triflash)

Standard features

• Electropump powered by lithium battery
• Independent emergency electric pump with all controls located in the basket
• Fully proportional controls
• Secure access to the working platform
• Hoses and cables routed inside the boom structure for maximum protection
• Aluminium telescopic boom for optimal stability

Technical specifications

• Max. working height: 11.80 m
• Max. outreach: 6.80 m
• Boom rotation: 360°
• Max. working load: 120 kg
• Max. platform height: 9.80 m
• Outriggers: none
• Basket size: 86 x 72 x 110 cm
• Gross vehicle weight (chassis): ≤ 3.5 t
• Boom type: Telescopic
• Drive: Electric
• IPAF category / Licence: 1b
