Mobile telescopic boom lift KL32

van-mountedelectricfully-electric

Overview

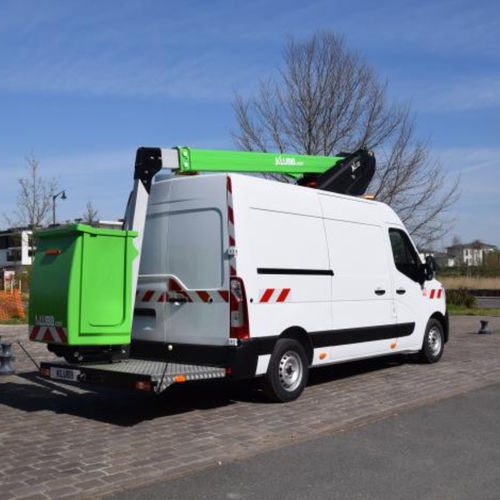

The KL32 is a van-mounted bucket with a telescopic boom providing a maximum working height of 12.50 m and a maximum outreach of 7.30 m. It is designed for tasks such as public lighting and telecommunications maintenance. The unit combines an aerial work platform and significant onboard storage to serve as a mobile workshop. Its electric drive enables silent, zero-emission operation suitable for urban fleets.

Key figures

• Working height: 12.50 m
• Offset (max. working outreach): 7.30 m
• Boom rotation: 360°
• Capacity / Max. working load: 120 kg

Standard features

• Back-up circuit on independent electric pump with all functions in the basket for maximum safety
• Proportional controls on all movements
• Secure access to the work platform
• Conveyor chain for hoses inside the mast for optimum protection
• Aluminium top mast for maximum stability
• Reinforced suspension

Examples of vehicles

• Renault Master L2H2 e‑Tech
• Opel Movano L2H2
• Nissan NV400 L2H2

Green Pack
The range can be equipped with the ecological option "Green Pack", allowing platform operation with the van engine switched off for reduced noise and emissions during interventions.

Technical specifications

• Max. working height: 12.50 m
• Max. working outreach: 7.30 m
• Boom rotation: 360°
• Max. working load: 120 kg (1 operator)
• Max. platform height: 9.80 m
• Outriggers: no outriggers required
• Basket size: 86 x 72 x 110 cm
• Chassis weight: ≤ 3.5 t
• Arm: Telescopic
• Engine: Electric
• IPAF category: 1b
• Lifting mechanism: Hydraulic
• Operators: 1
