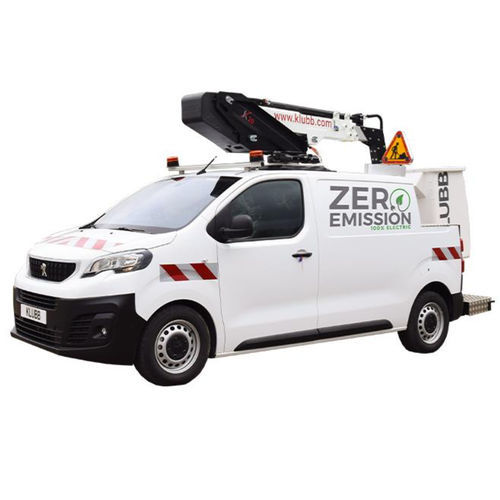

Mobile telescopic boom lift K20L

van-mountedelectricbattery-powered

Overview
XL battery pack (75 kWh). This 100% electric aerial work platform mounted on a cutaway Peugeot e-Expert offers 330 km WLTP driving range and up to 32 electric work cycles during interventions. The compact Klubb K20L design (5.5 m length) on a cutaway e-Expert is suitable for confined indoor and outdoor spaces such as underground car parks and pedestrian streets. It is adapted to operations requiring low noise and zero on-site emissions, for example CCTV installation and municipal maintenance. The platform operates without outriggers and provides a working height of 10.20 m and an outreach of 4.80 m.

Model and capacity
KLUBB model: K20L 100% electric
Capacity: 120 kg, 1 operator, no outriggers

Key performance figures
Working height: 10.20 m
Outreach: 4.80 m
Boom rotation: 360°

Usage and advantages
The all-electric configuration enables pollutant-free and low-noise operations, making it suitable for urban and noise-sensitive environments. The compact cutaway van installation allows access in tight spaces while maintaining on-road range and multiple electric work cycles.

Standard features

• Proportional controls on all movements
• Conveyor chain for hoses inside the mast for optimal protection
• Aluminium top mast for maximum stability
• Green Pack VL

Examples of vehicles

• Peugeot e-Expert L2H1 TRQ (XL battery pack: 75 kWh — range: 330 km WLTP)

Technical specifications

• Max. working height: 10.20 m
• Max. working outreach: 4.80 m
• Boom rotation: 360°
• Max. working load: 120 kg
• Max. platform height: 8.50 m
• Outriggers: no outriggers
• Basket size: 80 x 75 x 110 cm
• Chassis weight: ≤ 3.5 t
• Arm: Telescopic
• Engine: Electric
• IPAF category: 1b
• KLUBB model designation: K20L 100% electric
• Battery: XL battery pack (75 kWh) — stated autonomy: 330 km WLTP; 32 work cycles in electric mode
