Van-mounted telescopic boom lift KL17P

eco-friendly

Product overview

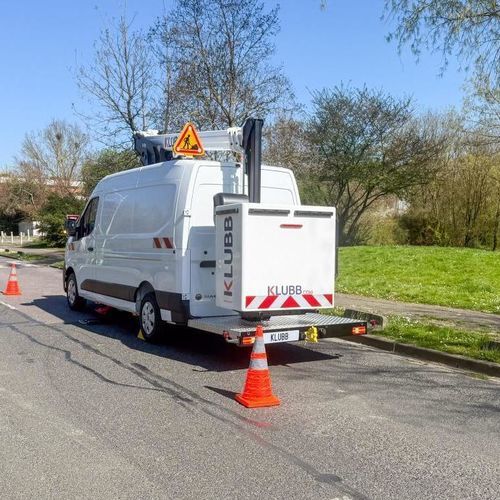

This KLUBB van-mounted aerial platform is designed for safe, efficient work at height on light vans (≤ 3.5 t). It is the only solution on the market reaching up to 17 m on a light van, offering a compact footprint, protected service lines and a high-performance steel boom with double extension and integrated cylinder for rigidity with reduced weight.

Model and capacity
Model: KL17P
Rated basket capacity: 250 kg

Key product data

• Working height: 17 m
• Maximum outreach (offset): 10.5 m
• Rotation: 420°

STANDARD FEATURES

• Lightweight three-section boom
• Articulated jib with optimized geometry for stiffness and reduced mass
• Low-profile cab support and turret aligned with rear-view mirrors
• Multi-bend lightweight column for compact stowage
• Multifunction upper control with 4.3-inch display
• Wired lower control with fully proportional joysticks for each main movement
• Electro-hydraulic unit optimised for smooth, simultaneous and proportional operations
• Control unit (ECU) with simplified wiring
• Hoses and cables routed and fully protected inside the boom
• Redundant safety moment limiter with encoder for sector management
• Acceleration/deceleration ramp managed by the ECU
• Anti-collision system
• Home function
• Automatic stabilisation
• 1 kV insulation according to DIN VDE standard

OPTIONS

• Signalling: triple flash, 2 flashing lights, reflective strips
• 220 V supply in the basket
• Custom interior layout of the vehicle
• Rotating basket
• Green Pack (eco option)

EXAMPLES OF VEHICLES

• RENAULT MASTER XDD

Green Pack
The Green Pack option allows operation of the platform with the van engine switched off, reducing noise and emissions during use in sensitive environments.

Technical specifications

• Brand: KLUBB
• Model: KL17P
• Working height: 17 m
• Maximum outreach: 10.5 m
• Rotation: 420°
• Basket capacity: 250 kg
• Boom: high-performance steel, double extension with integrated cylinder
• Hoses and cables: routed inside the boom for protection
• Controls: upper multifunction control (4.3" display), wired lower control with proportional joysticks
• Control unit: ECU with simplified wiring
• Stabilisation: automatic
• Insulation: 1 kV according to DIN VDE
