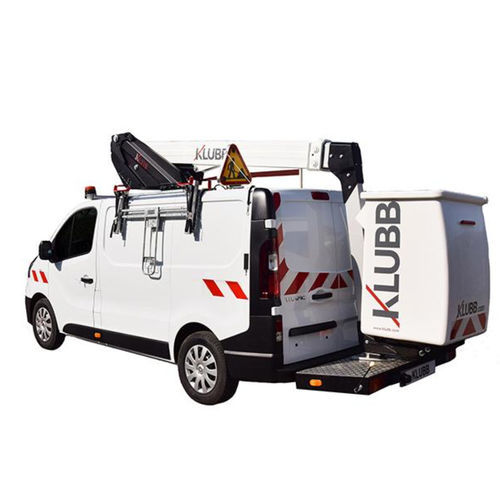

Van-mounted articulated boom lift KL21B

battery-poweredoutdoorcompact

Overview
Van-mounted telescopic aerial work platform KLUBB KL21B providing a working height of 11.40 m and a horizontal outreach of 6.80 m. Designed for operations from compact vans without outriggers, with a 1-person basket rated to 120 kg.

Summary
Its compact footprint makes the KLUBB KL21B particularly well-suited to municipalities, telecom operators and outdoor advertising companies operating in urban or confined spaces. The no-outrigger design and single-person basket enable fast deployment and safe interventions while minimising setup time. The unit is available for multiple van platforms (Renault Trafic, Peugeot Expert, etc.) and can be fitted with several options to enhance performance or operator safety.

Options

• Signalling devices (beacons, flashers, marking tape)
• 220 V electric socket in the basket
• Reinforced suspension
• Fully opening insulated basket
• Vehicle customisation and fit-out
• Side ladder rack
• Green Pack: operation with engine stopped (battery mode)

Standard Specifications

• Engine start/stop from the basket
• Independent emergency manual pump with all controls available in the basket
• Proportional controls for precise movements
• Secure access to the working platform
• Hoses and cables routed inside the boom for maximum protection
• Aluminium boom for optimum stability

Examples of vehicles

• RENAULT TRAFIC L1H1
• PEUGEOT EXPERT L2H1

Technical specifications

• Brand: KLUBB
• Model: KL21B
• Working height: 11.40 m
• Horizontal outreach: 6.80 m
• Rotation: 360°
• Basket capacity: 120 kg (1 operator)
• Designed for operation without outriggers; 1-person basket
• Boom material: aluminium
• Hoses and cables routed inside the boom
• Engine start/stop from basket
• Independent emergency manual pump with full basket controls
• Proportional controls for precise operation
• Available vehicle examples: Renault Trafic, Peugeot Expert
• Available options: signalling devices, 220 V socket in basket, reinforced suspension, fully opening insulated basket, vehicle customisation, side ladder rack, Green Pack (engine off operation)
