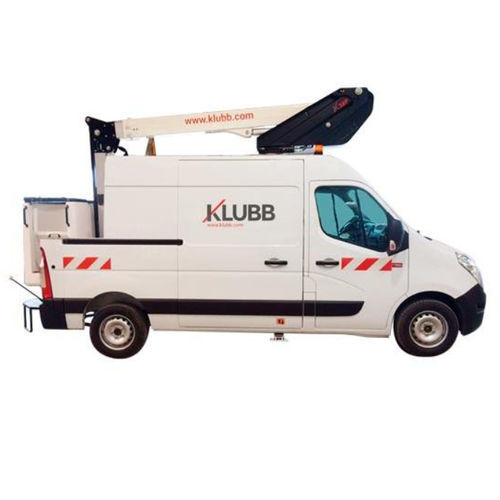

Van-mounted telescopic boom lift KL38P

gascompact

General description
Designed with a latest-generation swing arm, the compact KL38P van-mounted telescopic aerial platform is engineered for urban operations. It offers a 13.80 m working height and an 8.20 m outreach while keeping a compact installation footprint, making it suited to pruning, electrical works, signage installation and surface cleaning at height.

Key data

• Model: KL38P
• Capacity: 200 kg (2 operators) with outriggers
• Working height (stated): 13.80 m
• Outreach / Offset: 8.20 m
• Boom rotation: 360°

Standard features

• Engine start/stop from the basket
• Independent emergency electric pump with full basket controls for enhanced safety
• Proportional controls
• Secure access to the working platform
• Hoses and cables routed inside the boom structure for protection
• Aluminium boom for optimal stability

Technical specifications

• Max. working height: 14 m (45’93")
• Max. working outreach: 8.20 m (26’24")
• Boom rotation: 360°
• Max. working load: 200 kg
• Max. platform height: 12 m (39'37")
• Outriggers: 2 outriggers
• Basket size: 125 x 75 x 110 cm
• Chassis weight: ≤3.5 T
• Arm: Telescopic
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: Hydraulic

Examples of vehicles

• RENAULT TRAFIC L1H1
• PEUGEOT EXPERT L2H1

Green Pack
The range can be fitted with the ecological option "Green Pack" to allow platform operation with the van engine switched off.

Characteristics / Technical specifications

• Model: KL38P
• Working height: 13.80 m (technical max 14 m)
• Outreach / Offset: 8.20 m
• Rotation: 360°
• Max. load / Capacity: 200 kg (2 operators)
• Basket size: 125 x 75 x 110 cm
• Outriggers: 2
• Arm type: Telescopic
• Engine: Gas
• Lifting: Hydraulic
• IPAF category: 1b
• Chassis weight category: ≤3.5 T
