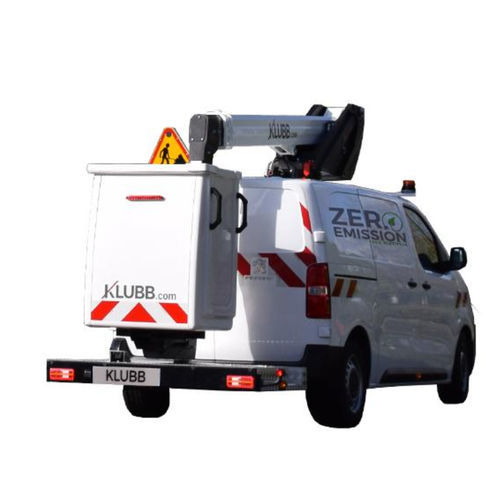

Van-mounted telescopic boom lift KL21B

electricbattery-poweredfully-electric

Overview
This 100% electric platform van provides an 11.40 m working height with a 6.50 m outreach. It is compact for operation in confined urban and indoor sites while keeping storage space and payload for tools and equipment. Easy to park and position on the road to minimise obstruction. No local emissions enable indoor work. Autonomy: up to 32 platform cycles and 230 km WLTP on the road (manufacturer data). A diesel version is also available with a Green Pack to operate the aerial platform with the engine switched off.

General information
Model: KL21B. Capacity: 120 kg (1 operator). Outriggers: none. Boom type: telescopic. Engine: electric. Rotation: 360°.

Technical specifications

• Max. working height: 11.40 m (37'50")
• Max. working outreach: 6.50 m (21'32")
• Boom rotation: 360°
• Max. working load: 120 kg
• Max. platform height: 9.40 m (30'83")
• Outriggers: no outriggers
• Basket size: 86 x 72 x 110 cm
• Chassis weight: ≤ 3.5 T
• Arm: Telescopic
• Engine: Electric
• IPAF category: 1b
• Lifting mechanism: hydraulic

Standard features

• Engine stop/start from the platform
• Emergency circuit with independent manual pump, full functionality from the platform
• Proportional controls on all movements
• Protected access to the work platform
• Chain conduit for hoses inside the mast for optimum protection
• Aluminium top mast for optimum stability
• Aluminium telescopic arm for maximum stability
• Reinforced suspension

Vehicle examples

• Peugeot e-Expert L2H1 (XL battery: 75 kWh - range: 330 km WLTP)

Use cases
Recommended for construction companies, telecommunications, video surveillance and network operators aiming to reduce carbon footprint and operate in urban or indoor environments.

Characteristics / technical specifications

• KLUBB Model: KL21B
• Max. working height: 11.40 m
• Max. working outreach: 6.50 m
• Rotation: 360°
• Max. working load / Capacity: 120 kg (1 operator)
• Max. platform height: 9.40 m
• Basket size: 86 x 72 x 110 cm
• Outriggers: none
• Chassis weight class: ≤ 3.5 T
• Arm: Telescopic
• Engine: Electric (diesel version available with Green Pack)
• IPAF category: 1b
• Lifting mechanism: Hydraulic
• Autonomy: 32 platform cycles and 230 km WLTP (manufacturer Stellantis data)
