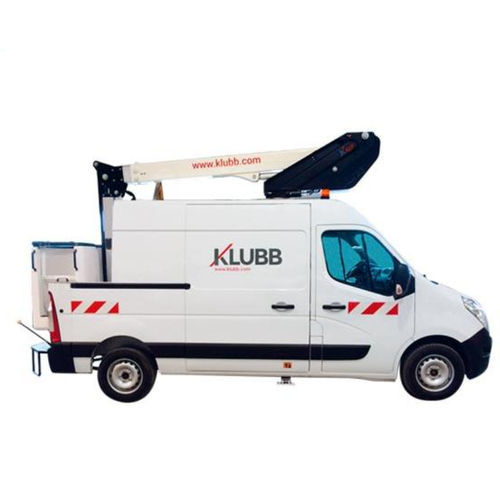

Van-mounted telescopic boom lift K42P

hydraulicgasoutdoor

Overview
Designed with the latest-generation swing arm, the KLUBB K42P is a van-mounted telescopic aerial platform offering multiple applications. Its performance suits pruning, electrical works, sign installation and cleaning at height. The unit functions as both an aerial platform and a workshop van.

Key data

• KLUBB model: K42P
• Capacity: 200 kg, 2 operators (with outriggers)

Main features

• Max. working height: 14.80 m
• Max. outreach: 8.20 m
• Boom rotation: 360°

Description
The K42P integrates a latest‑generation swing arm and a telescopic aluminium boom to provide stable positioning and precise manoeuvrability. Controls are proportional on all movements and emergency functions are available from the platform for safe operation. The equipment is designed for frequent professional use on utility and maintenance tasks.

Standard features

• Engine start/stop from the platform
• Independent emergency electric pump with full functionality from the platform
• Proportional controls on all movements
• Protected access to the working platform
• Hydraulics and cables routed inside the boom for protection
• Aluminium last arm for optimal stability

Examples of vehicles

• Renault Master L2H2
• Opel Movano
• Nissan NV400
• Iveco Daily
• Mercedes Sprinter

Technical specifications

• Model: K42P
• Max. working height: 14.80 m
• Max. working outreach: 8.20 m
• Boom rotation: 360°
• Max. working load: 200 kg
• Max. platform height: 12.80 m
• Outriggers: 2 A‑framed outriggers
• Basket size: 125 x 75 x 110 cm
• Chassis weight: ≤ 3.5 t
• Arm: Telescopic, aluminium
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: Hydraulic
