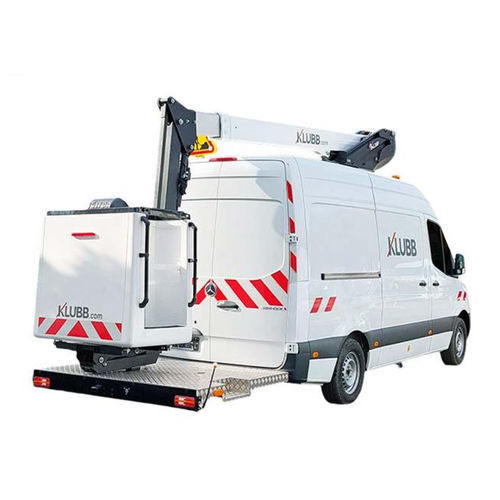

Van-mounted telescopic boom lift KL38P

gasfor multiple applications

Product overview
Van-mounted telescopic aerial platform KL38P providing a 13.80 m working height (45'28") and 8.20 m outreach (26'90"), designed with a latest-generation swing arm for customers requiring high storage capacity. Combines strong performance with easy parking and a large loading area to store tools, signal pads or spare lamps. Suitable for pruning, electrical work, sign installation and cleaning of surfaces at height. The unit can be equipped with a towing hook to tow a trailer.

Standard features

• Engine start and stop from the basket
• Independent emergency electric pump with all functions in the basket for maximum safety
• Proportional controls
• Secure access to the working platform
• Hoses and cables routed inside the boom structure for maximum protection
• Aluminium boom for optimum stability

Examples of vehicles

• RENAULT TRAFIC L1H1
• PEUGEOT EXPERT L2H1

Technical specifications

• Model: KL38P
• Max. working height: 13.80 m (45'28")
• Max. working outreach: 8.20 m (26'90")
• Boom rotation: 360°
• Max. working load / Capacity: 200 kg (2 operators)
• Max. platform height: 12 m (39'37")
• Outriggers: no outriggers
• Basket size: 125 x 75 x 110 cm
• Chassis weight: ≤ 3.5 T
• Arm: telescopic
• Engine: Gas
• Licence: 1b
