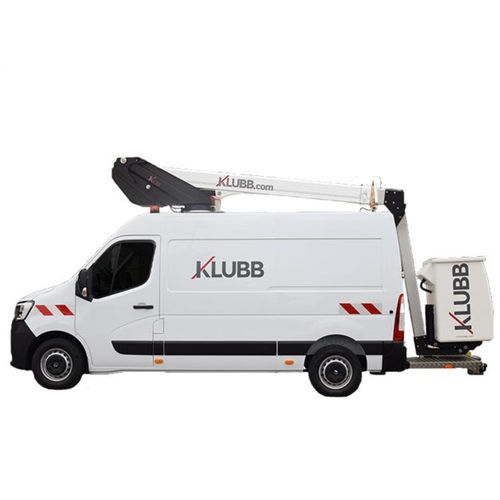

Van-mounted telescopic boom lift KL32

gasoutdoor

Overview
Designed for work at height such as maintenance of public lighting and adaptable for telecom network maintenance. The KL32 lightweight van-mounted aerial platform provides an additional payload benefit for interventions and features a telescopic arm reaching a working height of 12.50 m with a horizontal offset of 7.30 m, operable without outriggers.

Model and capacity
KLUBB Model = KL32
Capacity = 120kg, 1 operator, no outriggers

Standard features

• Optimised payload: an additional 140kg available
• Engine start and stop from the basket
• Independent emergency electric pump with all the features in the basket for maximum security
• Proportional controls
• Secure access to the working platform
• Hoses and cables are inside the boom structure for maximum protection
• Aluminium boom for optimum stability

Technical specifications

• Max. working height: 12.50 m (41’01”)
• Max. working outreach: 7.30 m (23’95”)
• Boom rotation: 360°
• Max. working load: 120 Kg
• Max. platform height: 10.50 m (34’20”)
• Outriggers: no outriggers
• Basket size: 86 x 72 x 110 cm
• Chassis weight: ≤ 3.5 T
• Arm: Telescopic
• Engine: Gas
• IPAF category: 1b
• Lifting mechanism: hydraulic

Examples of vehicles

• RENAULT MASTER
• OPEL MOVANO
• NISSAN NV400
• IVECO DAILY
• MERCEDES SPRINTER
• VOLKSWAGEN CRAFTER
• FORD TRANSIT
• FIAT DUCATO

Caractéristiques / spécifications techniques

• Working height: 12.50 m
• Working outreach (offset): 7.30 m
• Rotation: 360°
• Platform capacity: 120 kg (1 operator)
• Platform dimensions (basket): 86 x 72 x 110 cm
• Platform max height: 10.50 m
• Outriggers: none required
• Arm type: telescopic
• Engine type: gas
• Lifting mechanism: hydraulic
• IPAF category: 1b
