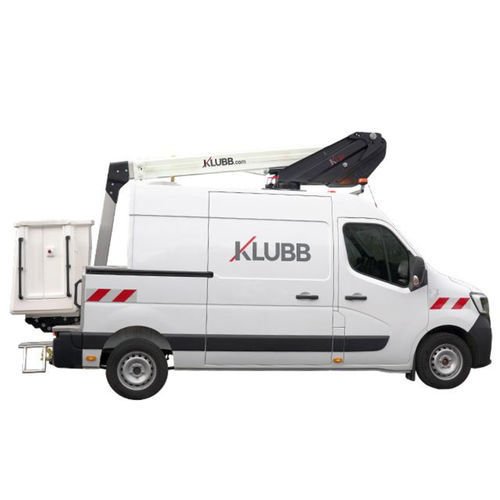

Van-mounted aerial work platform KL26

hydraulicfor constructionoutdoor

Overview
The KL26 is a van-mounted telescopic aerial platform designed for maintenance tasks requiring up to 11.80 m working height and 6.80 m outreach. Suited to telecom maintenance, street lighting and road operations, the KL26 fits L2H2 type vans and is configured to preserve load capacity and usable cargo space. Options include a 1-person basket without outriggers or a 2-person basket with outriggers. Rear doors can be replaced by a curtain for easier equipment loading. Highway safety equipment (reflective strips, flashing light, triflash) can be fitted.

Capacity & Model

• Brand / Model: KLUBB KL26
• Capacity: 120 kg (1 operator) without outriggers

Standard features

• Engine start/stop from the basket
• Independent emergency electric pump with full basket controls for enhanced safety
• Proportional controls for smooth operation
• Secure access to the working platform
• Hoses and cables routed inside the boom for protection
• Aluminium boom for optimized stability

Technical Specifications

• Max. working height: 11.80 m
• Max. working outreach: 6.80 m
• Boom rotation: 360°
• Max. working load: 120 kg
• Max. platform height: 9.80 m
• Outriggers: none (optional with 2-person basket)
• Basket size: 86 x 72 x 110 cm
• Chassis class: ≤ 3.5 T
• Arm: Telescopic
• Engine: Gas
• Licence: 1b
• Lifting mechanism: Hydraulic

Examples of vehicles

• RENAULT MASTER
• OPEL MOVANO
• NISSAN NV400
• IVECO DAILY
• MERCEDES SPRINTER
• VOLKSWAGEN CRAFTER
• FORD TRANSIT
• FIAT DUCATO

Characteristics / technical specifications

• Brand: KLUBB
• Model: KL26
• Working height: 11.80 m
• Working outreach: 6.80 m
• Rotation: 360°
• Maximum load: 120 kg
• Platform height: 9.80 m
• Basket dimensions: 86 x 72 x 110 cm
• Outriggers: none (optional)
• Arm type: Telescopic
• Engine type: Gas
• Lifting mechanism: Hydraulic
• Chassis class: ≤ 3.5 T
