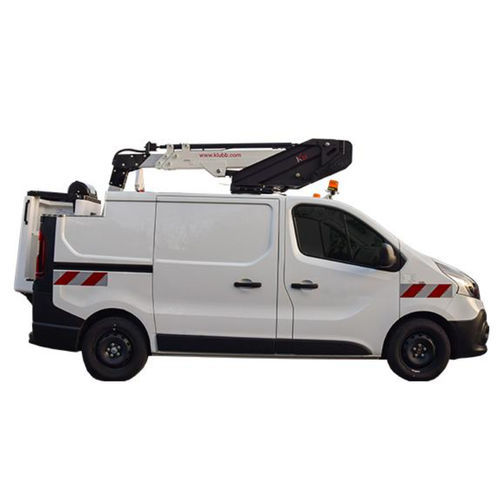

Van-mounted telescopic boom lift K20L

hydraulicoutdoor

Overview
The KLUBB K20L is a telescopic aerial work platform mounted on a cutaway van chassis, designed for urban and municipal tasks. It delivers a working height of 10.50 m with a horizontal outreach of 6.00 m and a 420° rotation. The unit is suitable for public lighting maintenance, CCTV installation, traffic-signal servicing and telecommunications work.

Key product identifiers

• Manufacturer: KLUBB
• Model: K20L
• Mounting: Cutaway van
• Working height: 10.50 m
• Horizontal outreach (offset): 6.00 m
• Rotation: 420°
• Basket capacity: 120 kg (1 person)
• Boom: Aluminium telescopic
• Stabilisers: none

Standard Features

• Engine start/stop from the basket
• Independent emergency electric pump with full controls in the basket
• Proportional controls on all movements for precise positioning
• Secure access to the working platform
• Hoses and cables routed inside the boom for protection
• Aluminium telescopic boom for optimal stability

Options

• Signalling devices (triflash, two flashing lights, reflective strips)
• 220 V electric socket in the basket
• Reinforced suspensions
• Fully opening insulating basket
• Custom vehicle fit-outs
• Side ladder rack
• Green Pack: platform operation with vehicle engine stopped

Examples of vehicles

• RENAULT TRAFIC L1H1 (wheelbase 3098 mm)
• PEUGEOT EXPERT L2H1 (wheelbase 3262 mm)

Design & Durability
The aluminium telescopic boom provides excellent stability. The conveyor chain and extension cylinders are protected within the boom structure to enhance durability. The unit operates fully hydraulically to simplify maintenance and support global servicing.

Technical specifications

• Model: K20L
• Manufacturer: KLUBB
• Mounting: Cutaway van
• Working height: 10.50 m
• Horizontal outreach: 6.00 m
• Rotation: 420°
• Basket capacity: 120 kg (1 person)
• Boom type: Aluminium telescopic
• Controls: Proportional; engine start/stop from basket
• Emergency system: Independent emergency electric pump with basket controls
• Protection: Hoses and cables inside boom; conveyor chain and extension cylinders protected
• Operation: Fully hydraulic
• Available options: Signalling devices, 220 V socket in basket, reinforced suspensions, insulating basket, custom vehicle fit-outs, side ladder rack, Green Pack
