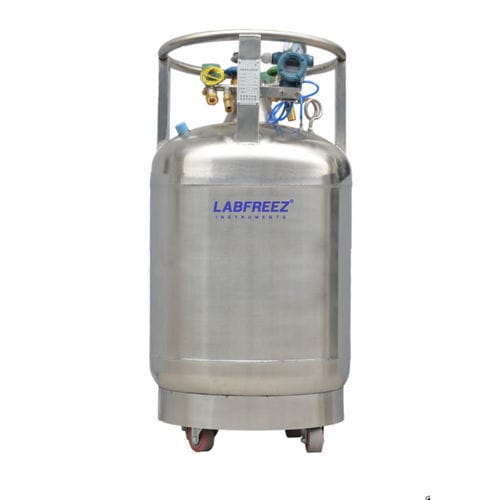

Industrial Dewar BNC-F series

laboratoryfor the pharmaceutical industryfor the food industry

Overview
Self-pressurized BNC-F series liquid nitrogen containers use vaporization of a small amount of liquid nitrogen to build pressure, enabling automatic discharge and transfer to other containers. They are designed for transport and storage of liquid nitrogen and serve as a cold source for refrigeration devices. Stainless-steel construction reduces evaporation losses. Standard fittings include a pressure-building valve, liquid valve, release valve and pressure gauge; models over 200 L also include a bursting disc and muffler. All models feature four bottom casters for mobility. SKU: BNC-F Series

PRODUCT QUALIFICATION
CE certificate; National cryogenic container quality supervision and inspection center.

APPLICATION RANGE
Primarily used for storage of liquid nitrogen and for filling other containers. Common applications: mold industry, animal husbandry, pharmaceuticals, semiconductors, food processing, low-temperature chemistry, aerospace, military and related fields.

Liquid Nitrogen Containers Product Features

• Ergonomic design for easy operation by personnel
• Equipped with high-quality American cryogenic valves
• Special neck design for ultra-low evaporation rate
• Optional transport cart for easier handling
• Optional monitoring system to display level and pressure data

Specifications (summary table)
Table columns shown as header followed by rows (rows separated by
):
Model | Geometric capacity (L) | Effective capacity (L) | Outer diameter (mm) | Height (mm) | Weight empty (KG) | Neck diameter (mm) | Daily evaporation rate (%) | Standard working pressure (Mpa) | Maximum working pressure (Mpa) | Setting pressure of first safety valve (Mpa) | Setting pressure of second safety valve (Mpa) | Pressure gauge indication range (Mpa)
BNC-F5 | 5.5 | 5 | 329 | 510 | 15 | 40 | 3 | 0.05 | 0.09 | 0.099 | 0.15 | 0～0.25
BNC-F15 | 16.5 | 15 | 404 | 750 | 23 | 40 | 2.5 | 0.05 | 0.09 | 0.099 | 0.15 | 0～0.25
BNC-F30 | 32 | 30 | 454 | 879 | 32 | 40 | 2.5 | 0.05 | 0.09 | 0.099 | 0.15 | 0～0.25
BNC-F50 | 55 | 50 | 506 | 991 | 54 | 40 | 2 | 0.05 | 0.09 | 0.099 | 0.15 | 0～0.25
BNC-F100 | 110 | 100 | 606 | 1185 | 75 | 40 | 1.3 | 0.05 | 0.09 | 0.099 | 0.15 | 0～0.25

Additional models (larger capacities):
Model | Geometric capacity (L) | Effective capacity (L) | Outer diameter (mm) | Height (mm) | Weight empty (KG) | Neck diameter (mm) | Daily evaporation rate (%) | Standard working pressure (Mpa) | Maximum working pressure (Mpa) | Setting pressure of first safety valve (Mpa) | Setting pressure of second safety valve (Mpa) | Bursting disc working pressure (Mpa) | Pressure gauge indication range (Mpa)
BNC-F150 | 165 | 150 | 706 | 1188 | 102 | 40 | 1.3 | 0.05 | 0.09 | 0.099 | 0.15 | — | 0～0.25
BNC-F175 | 185 | 175 | 706 | 1298 | 120 | 40 | 1.2 | 0.05 | 0.09 | 0.099 | 0.15 | — | 0～0.25
BNC-F200 | 220 | 200 | 758 | 1265 | 130 | 40 | 1.2 | 0.05 | 0.09 | 0.099 | 0.15 | 0.47 | 0～0.25
BNC-F300 | 330 | 300 | 857 | 1459 | 202 | 40 | 1.1 | 0.05 | 0.09 | 0.099 | 0.15 | 0.47 | 0～0.25
BNC-F500 | 550 | 500 | 1008 | 1576 | 255 | 40 | 1.1 | 0.05 | 0.09 | 0.099 | 0.15 | 0.47 | 0～0.25

Configuration summary
Table columns: Model | Caster | Infusion hose | Float level gauge | Electric level meter | Solenoid valve | Regulator | Repeaters (notation: ● Standard, ◎ Optional, — None)
BNC-F5 | ● | ● | ◎ | — | — | — | —
BNC-F15 | ● | ● | ◎ | — | — | — | —
BNC-F30 | ● | ● | ◎ | — | — | — | —
BNC-F50 | ● | ● | ◎ | — | — | — | —
BNC-F100 | ● | ● | ◎ | — | — | — | —
For larger / E / K variations (e.g. BNC-F50E, BNC-F100E, BNC-F200E, BNC-F300E, K models) additional items such as electric level meter, solenoid valve, regulator and repeaters are available as indicated in full configuration table (● Standard, ◎ Optional, — None).

Notes

• Standard = ●
• Optional = ◎
• None = —
