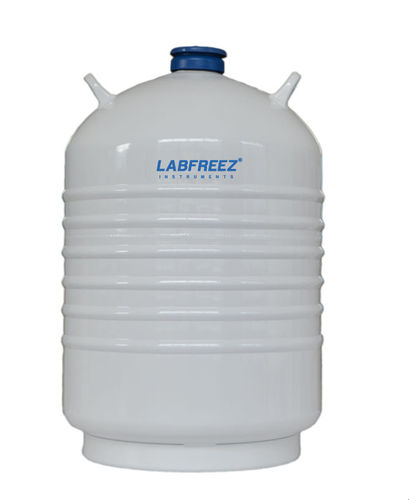

Sample Dewar BNC-A series

for liquid nitrogenstoragealuminium

Product overview
Transportation-type liquid nitrogen container from the BNC-A series for long-distance delivery of biological samples and for artificial insemination. Optional locked-lid switch and optional intelligent monitor; leather carrying bag supplied.

Certifications

• CE certificate
• National cryogenic container quality supervision and inspection center approval

Key features

• High-strength aluminium alloy construction
• Advanced powder-coating finish to prevent paint peeling
• Optional locked-lid switch for sample security
• Leather carrying bag included for easy transport
• Service life over five years under normal use
• Optional intelligent monitor to display internal temperature during transport

Applications
Portable BNC-A series containers are intended for transporting and delivering biological samples and for artificial insemination logistics where cryogenic portability is required.

Specifications (selected models)

• Model BNC-A20B-50 — Capacity 20 L / Neck 50 mm / Empty weight 6.9 kg / Static evaporation 0.20 L/day / Static holding time 101 days
• Model BNC-A30B-50 — Capacity 30 L / Neck 50 mm / Empty weight 10.2 kg / Static evaporation 0.19 L/day / Static holding time 159 days
• Model BNC-A30B-80 — Capacity 30 L / Neck 80 mm / Empty weight 14.3 kg / Static evaporation 0.28 L/day / Static holding time 106 days
• Model BNC-A35B-50 — Capacity 35 L / Neck 50 mm / Empty weight 14.5 kg / Static evaporation 0.20 L/day / Static holding time 179 days
• Model BNC-A35B-80 — Capacity 35 L / Neck 80 mm / Empty weight 14.3 kg / Static evaporation 0.29 L/day / Static holding time 119 days
• Model BNC-A50B-50 — Capacity 50 L / Neck 50 mm / Empty weight 19.3 kg / Static evaporation 0.23 L/day / Static holding time 213 days
• Model BNC-A50B-80 — Capacity 50 L / Neck 80 mm / Empty weight 20.1 kg / Static evaporation 0.34 L/day / Static holding time 147 days
• Canister configuration: 6 canisters; straw capacities vary by model (single/double level, 0.5 ml and 0.25 ml available)
• Options: Lockable lid (optional); Intelligent monitor (optional)
