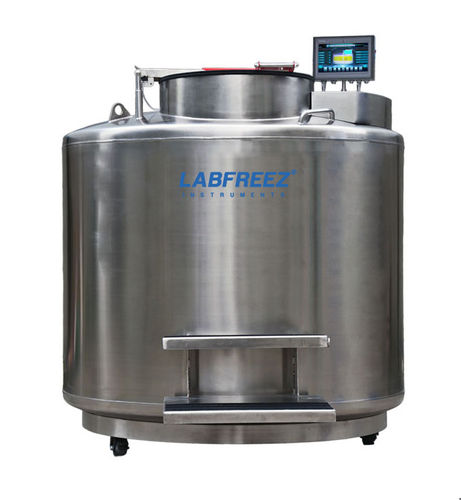

Laboratory Dewar BNC series

for samplesfor liquidsnitrogen

Product description
Biobank Series provide users with automatic, secure and reliable cryogenic liquid nitrogen freezing systems. Tanks are made of high quality stainless steel, equipped with casters and brakes, and wide neck opening for easy to pick and place specimen. Specimen could be stored in liquid or vapor, and control system provides high convenience and security. To achieve the most economical operation, our design ensures the lowest consumption of liquid nitrogen and the maximum storage capacity of the specimen.

Key features

• Advanced evacuation technology, adiabatic technology and high vacuum retention to ensure safe storage and low LN2 consumption.
• When stored in vapor, temperature difference across storage area does not exceed 10 °C; top rack lowest temperature can reach -190 °C.
• Fast specimen access, reliable protection, convenient liquid nitrogen auto-fill and flexible storage capacity.

Product Advantages

• Big storage capacity: Compared with similar products, our products need less space and can store more samples; save space and reduce cost.
• Excellent temperature uniformity: Vacuum insulated stainless steel structure with high vacuum coverage to ensure excellent insulation properties.
• Stable open cover temperature: Innovative lid and small neck opening design greatly reduce liquid nitrogen evaporation rate; even with lid open for long time temperature remains stable; temperature not higher than -150 °C within 48 hours.
• Advanced temperature monitoring system: Microprocessor-based control and vertical double platinum resistance temperature probe displays realtime temperature with accuracy ±1 °C. User-settable alarm temperature and alarm mute option.
• Automatic LN2 filling & level monitoring: Differential pressure sensor based level monitoring displays real-time liquid level to ensure safe and reliable automatic filling. 10-inch LCD touch screen displays top/bottom temperature, liquid level, and operating status.
• Hot gas bypass: Removes warm gas before LN2 filling so only liquid nitrogen enters tank, preventing temperature fluctuations during filling and reducing LN2 consumption.
• Human-centered design: Stainless steel auxiliary table for temporary placement of racks, folding steps to reduce operation platform height, spare openings on internal tray for recovery of dropped samples.

Notice
This series can be used for storing in liquid & vapor nitrogen.

Models and technical tables (summaries)
BNC stainless steel liquid/vapor nitrogen container — VS series (selected models)
Models: BNC-330-VS/PM | BNC-540-VS/PM | BNC-1000-VS/PM
Capacity (L): 330 | 540 | 1090
Liquid nitrogen capacity under pallet (L): 50 | 70 | 195
Neck diameter (mm): 326 | 440 | 610
Inner height (mm): 600 | 600 | 620
Outer diameter (mm): 870 | 1080 | 1565
Height (mm): 1180 | 1160 | 1360
Empty weight (kg): 219 | 328 | 851
Operation height (mm): 1180 | 1160 | 1060
Maximum storage capacity (1.2/1.8/2 ml vials): 13000 | 26000 | 58500
Racks with 10x10 vial boxes: 12 | 24 | 54
Racks with 5x5 vial boxes: 4 | 8 | 18
Vial boxes per rack: 10 | 10 | 10
Maximum 0.5 ml vial capacity: 18200 | 33800 | 81900
Racks with 5x5 0.5 ml vial boxes: 4 | 8 | 18
Racks with 10x10 0.5 ml vial boxes: 12 | 24 | 54
Vial boxes per rack (0.5 ml): 14 | 13 | 14

BNC stainless steel liquid/vapor nitrogen container — VS series (larger models)
Models: BNC-440-VS/PM | BNC-750-VS/PM | BNC-800-VS/PM | BNC-1500-VS/PM
Capacity (L): 445 | 750 | 790 | 1570
Liquid nitrogen capacity under pallet (L): 50 | 110 | 115 | 254
Neck diameter (mm): 326 | 440 | 460 | 610
Inner height (mm): 828 | 828 | 773 | 910
Outer diameter (mm): 870 | 1080 | 1180 | 1565
Height (mm): 1420 | 1431 | 1435 | 1570
Empty weight (kg): 277 | 372 | 441 | 914
Operation height (mm): 1120 | 1110 | 1110 | 1070
Maximum storage capacity (1.2/1.8/2 ml vials): 18200 | 36400 | 42900 | 76050
Racks with 10x10 vial boxes: 12 | 24 | 32 | 54
Racks with 5x5 vial boxes: 4 | 8 | 4 | 18
Vial boxes per rack: 14 | 14 | 13 | 13
Maximum 0.5 ml vial capacity: 23400 | 46800 | 56100 | 99450
Racks with 5x5 0.5 ml vial boxes: 4 | 8 | 4 | 18
Racks with 10x10 0.5 ml vial boxes: 12 | 24 | 32 | 54
Vial boxes per rack (0.5 ml): 18 | 18 | 17 | 17

BNC stainless steel liquid/vapor nitrogen container — VS series (largest models)
Models: BNC-930-VS/PM | BNC-1800-VS/PM | BNC-1800-VS/PT
Capacity (L): 930 | 1785 | 1785
Liquid nitrogen capacity under pallet (L): 130 | 265 | 265
Neck diameter (mm): 460 | 610 | 610
Inner height (mm): 900 | 900 | 900
Outer diameter (mm): 1180 | 1565 | 1565
Height (mm): 1580 | 1680 | 1680
Empty weight (kg): 495 | 970 | 985
Operation height (mm): 1080 | 1080 | 1080
Maximum storage capacity (1.2/1.8/2 ml vials): 49500 | 87750 | 94875
Racks with 10x10 vial boxes: 32 | 54 | 60
Racks with 5x5 vial boxes: 4 | 18 | 13
Vial boxes per rack: 15 | 15 | 15
Maximum 0.5 ml vial capacity: 66000 | 117000 | 126500
Racks with 5x5 0.5 ml vial boxes: 4 | 18 | 13
Racks with 10x10 0.5 ml vial boxes: 32 | 54 | 60
Vial boxes per rack (0.5 ml): 20 | 20 | 20

Application range
Appropriate for long-term static preservation in liquid of large numbers of biological samples such as stem cells, plasma, semen, embryo, tissue, organ, and similar biological samples.

Note
Tables above summarize the model families, dimensions, capacities, and rack/vial configurations for the BNC S series biobank freezers. All numeric values (capacities, dimensions, weights) are provided as specified by the product documentation.
