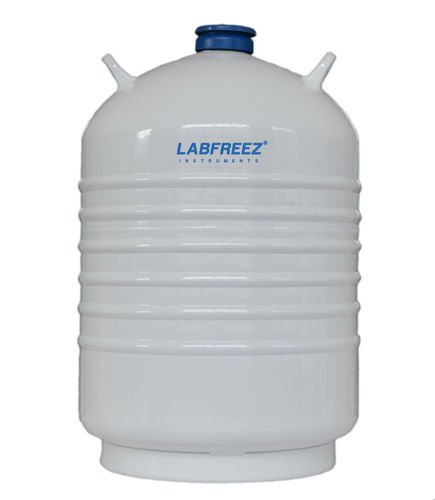

Laboratory Dewar BNC-A series

for samplesfor liquid nitrogenstorage

Product overview
Static storage BNC-A series biologic liquid nitrogen tanks for long-term static preservation of biological samples.

Summary
The BNC-A static storage series provides compact, cost-effective liquid nitrogen tanks engineered for long-term static storage of cryogenic samples. Constructed from high-strength lightweight aluminum alloy with multi-layer insulation, these models combine low evaporation loss with large internal capacity. Multiple neck sizes, canister configurations and optional accessories allow adaptation to biobank and laboratory workflows.

Biologic Liquid Nitrogen Tank Product Features

• High-strength, lightweight aluminum alloy construction
• Equipped with carrying belt for handling
• Ultra-low static evaporation loss (0.11–0.23 L/day depending on model)
• High straw capacity (single and double level options)
• Optional vials tube and cryotube racks
• Optional lockable lid to prevent unauthorized opening
• Optional liquid level monitoring system
• Optional roller base and liquid nitrogen pump
• CE certified; five years vacuum warranty

Frozen clamp
The series supports storage of 0.5 mL–5 mL cryotubes with cryopreservation clips (frozen clamps) for organized, secure tube handling.

Specifications (selected lines from product tables)
BNC-A Storing type — Long term storage of biological samples
Model | Capacity (L) | Empty Weight (KG) | Neck (mm) | Outer Diameter (mm) | Height (mm) | Static evaporation loss rate (L/day) | Static holding time (day) | Canister outer diameter (mm) | Canister height (mm) | Number of canisters (ea)
BNC-A10-80 | 10 | 6.5 | 80 | 300 | 540 | 0.21 | 48 | 63 | 120 | 6
BNC-A13-50 | 13 | 6.6 | 50 | 310 | 610 | 0.12 | 109 | 38 | 276 | 6
BNC-A15-50 | 15 | 8.2 | 50 | 394 | 575 | 0.11 | 134 | 38 | 120 | 6
BNC-A20-50 | 20 | 11.7 | 50 | 394 | 656 | 0.12 | 168 | 38 | 120/276 | 3~6
BNC-A25-50 | 25 | 12.1 | 50 | 394 | 685 | 0.12 | 208 | 38 | 120/276 | 3~6

BNC-A (larger models) — Long term storage of biological samples
Model | Capacity (L) | Empty Weight (KG) | Neck (mm) | Outer Diameter (mm) | Height (mm) | Static evaporation loss rate (L/day) | Static holding time (day) | Canister outer diameter (mm) | Canister height (mm) | Number of canisters (ea)
BNC-A30-50 | 31.5 | 12 | 50 | 461 | 655 | 0.12 | 254 | 38 | 120/276 | 3~6
BNC-A30-80 | 31.5 | 12.4 | 80 | 461 | 656 | 0.21 | 147 | 63 | 120/276 | 3~6
BNC-A35-50 | 35 | 14 | 50 | 461 | 695 | 0.12 | 286 | 38 | 120/276 | 6
BNC-A35-80 | 35 | 14.2 | 80 | 461 | 698 | 0.22 | 159 | 63 | 120/276 | 6
BNC-A50B-50 | 50 | 19.3 | 50 | 461 | 770 | 0.23 | 213 | 38 | 120/276 | 6

Straw holding capacity (single / double level) — examples
Single level (0.5 mL): examples include 792 / 1788 / 1508 / 1284 depending on model configuration. Double level (0.5 mL): examples include 1284 / 2832 / 3624 / 8460. 0.25 mL values are provided in tables as well.

Configuration (selected items)
Standard and optional items vary by model: canister sizes (φ38, φ63, φ97, φ72×10, etc.), racks with different grid configurations, standard lids, optional lock covers, smart monitor, protective jacket, tray cart. Symbols in original table: ● = standard, ◎ = optional.

Technical characteristics

• Construction: high-strength lightweight aluminum alloy with multi-layer insulation
• Certification: CE certified
• Vacuum warranty: five years
• Options: lockable lid, level monitoring, roller base, liquid nitrogen pump, vials tube, smart monitor, protective jacket, tray cart
• Static evaporation loss: typical rates 0.11–0.23 L/day depending on model
• Static holding time: from ~48 days up to ~286 days depending on model and capacity
• Canister options: multiple diameters and heights; number of canisters varies by model
• Straw capacity: wide range (see table examples for 0.5 mL and 0.25 mL configurations)
