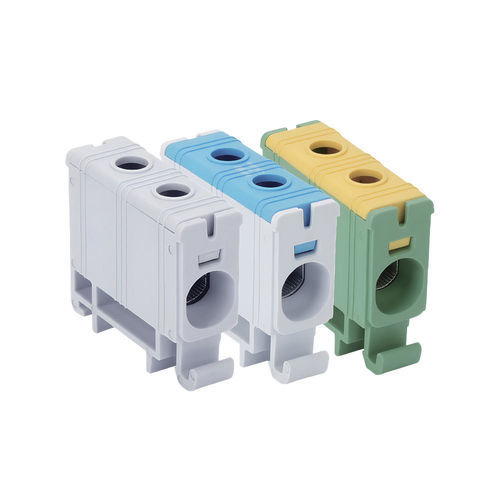

Panel-mount terminal block DTB-1E35 series

DIN rail-mountedscrew connectionhigh-current

Overview
1-pole, 2-conductor junction block DTB-1E35 designed for secure connection of two copper or aluminium conductors from 2.5 to 35 mm². Rated current: 135 A (Cu) / 120 A (Al). Tinned aluminium conductor body and conductive grease supplied to optimise contact.

Function
The power junction block provides a reliable connection for two conductors (Cu/Al) in high-current power circuits. Ensures electrical continuity and mechanical retention suitable for industrial and commercial electrical panels.

Applications
Ideal for industrial and commercial electrical panels, power cable connections, distribution terminals or electrical equipment requiring a compact and secure installation.

Electrical characteristics

• Rated current: 135 A (Cu) / 120 A (Al)
• Connection: Copper (Cu) or Aluminium (Al)
• Conductor range: 2.5–35 mm²
• Clamping: Hex socket screw
• Tightening torque: 3 Nm (2.5–16 mm²); 6 Nm (25–35 mm²)
• Rated voltage: 1000 V AC / 1500 V DC
• Conductive grease: Supplied to optimise contact
• Standard: Compliant with EN60947-7-1

Physical characteristics

• Housing: PA66 V0 self-extinguishing, removable cover, available in 3 colour options for functional identification (light grey; light grey/blue; green/yellow)
• Conductor body: Tinned aluminium
• Mounting: DIN rail or surface-mounted
• Poles: 1
• Number of conductors: 2 per block
• Ingress protection: IP20

Packaging

• Sold individually
• Box: 20 pieces
• Carton: 660 pieces

Usage recommendations

• Cable selection: Use conductors 2.5 to 35 mm², copper or aluminium
• Ferrules: Required for flexible conductors to ensure a reliable connection
• Tightening: Respect recommended torques by conductor size (3 to 6 Nm)
• Mounting: Fix on DIN rail or surface-mount as needed
• Circuit identification: Use housing colours to identify phase, neutral and earth
• Maintenance: Regularly check tightening and contact cleanliness

Variants and ordering codes
Header: Order code | Primary current | Conductor range | Colour | Availability
DTB-1E35 | Cu: 135 A / Al: 120 A | Cu/Al: 2.5–35 mm² | Light grey | in stock
DTB-1E35B | Cu: 135 A / Al: 120 A | Cu/Al: 2.5–35 mm² | Light grey / blue | in stock
DTB-1E35D | Cu: 135 A / Al: 120 A | Cu/Al: 2.5–35 mm² | Green / yellow | in stock

Documents
Product sheet and technical documentation available (junction block range datasheet).

Technical specifications

• Model reference: DTB-1E35
• Rated current: 135 A (Cu) / 120 A (Al)
• Accepted conductor range: 2.5–35 mm²
• Connection type: Copper or Aluminium
• Clamping: Hex socket screw (torques: 3 Nm for 2.5–16 mm²; 6 Nm for 25–35 mm²)
• Rated voltage: 1000 V AC / 1500 V DC
• Conductor body: Tinned aluminium
• Housing: PA66 V0, removable cover, colour options for identification (light grey, light grey/blue, green/yellow)
• Mounting: DIN rail or surface-mounted
• Poles: 1
• Number of conductors: 2 per block
• Ingress protection: IP20
• Standard: EN60947-7-1
• Conductive grease: Supplied
• Packaging: box 20 pcs, carton 660 pcs
