DIN rail-mounted terminal block DTB-1E150x series

panel-mountscrew connectionpower

Presentation
1-pole, 2-cable high-current junction block for large-section conductors (copper or aluminium) from 35 to 150 mm². Maximum current: 320 A (Cu) / 290 A (Al). Compliant with EN60947-7-1. Conductive grease included to optimize contact.

Electrical characteristics

• Maximum current: 320 A (Cu) / 290 A (Al)
• Compatible conductors: Copper (Cu) or Aluminium (Al)
• Cross-section range: 35–150 mm²
• Fastening: hexagon socket head screw
• Tightening torque:
  • 20 Nm (35–95 mm²)
  • 30 Nm (120–150 mm²)
• Rated voltage: 1000 V AC / 1500 V DC
• Conductive grease: included
• Standard: compliant with EN60947-7-1

Physical characteristics

• Housing: PA66 V0 self-extinguishing, removable cover, available in 3 color options for functional identification (light grey; light grey and blue; green and yellow)
• Conductive body: tinned aluminium
• Mounting: DIN rail or surface mount
• Number of poles: 1
• Number of cables: 2 per block
• Protection: IP20

Packaging

• Sold individually
• Box: 5 pieces
• Carton: 140 pieces

Features
Block designed for connection of very large-section conductors, ensuring reliable electrical contact between copper and aluminium cables and high mechanical strength under heavy loads.

Applications

• Heavy electrical distribution installations (main switchboards)
• Industrial power cabinets
• Main incoming lines, busbars and high-current distribution

Usage advice

• Cable selection: 35–150 mm², copper or aluminium
• Ferrules: required for flexible conductors to ensure uniform contact
• Tightening: apply 20–30 Nm depending on conductor cross-section
• Mounting: fix on DIN rail or surface mount according to cabinet architecture
• Identification: use housing colors to identify phase, neutral and earth
• Maintenance: regularly check tightening and cleanliness of contacts

Variants and order codes

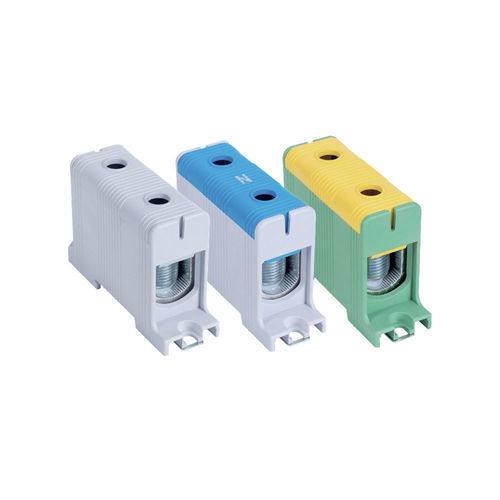

• DTB-1E150 — Cu: 320 A / Al: 290 A — Cu/Al: 35–150 mm² — Color: Light grey — in stock
• DTB-1E150B — Cu: 320 A / Al: 290 A — Cu/Al: 35–150 mm² — Color: Light grey / blue — in stock
• DTB-1E150D — Cu: 320 A / Al: 290 A — Cu/Al: 35–150 mm² — Color: Green / yellow — in stock

Technical specifications

• Maximum current: 320 A (Cu) / 290 A (Al)
• Conductor cross-section: 35–150 mm²
• Rated voltage: 1000 V AC / 1500 V DC
• Conductive body: tinned aluminium
• Housing: PA66 V0, removable cover
• Fastening: hexagon socket head screw, 20–30 Nm depending on section
• Mounting: DIN rail or surface mount
• Protection: IP20
