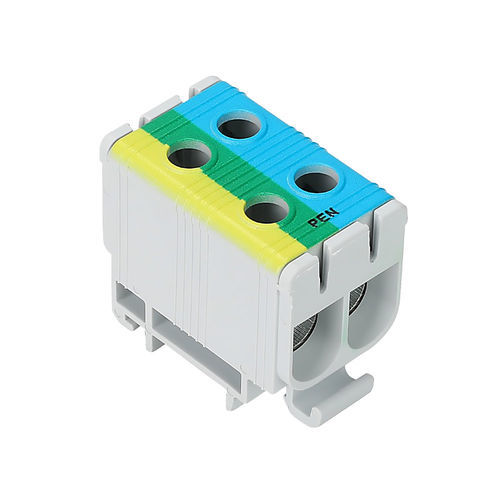

DIN rail-mounted terminal block DTB-2E50PEN

panel-mountscrew connectioninsulated

Presentation
PEN junction block 2 poles 145-160A designed to centralize the PEN conductor (combined neutral and earth) in electrical panels. Enables reliable power distribution and continuity of protective earthing in industrial and commercial installations.

Electrical characteristics

• Maximum current: 160 A (Copper) / 145 A (Aluminium)
• Connection: compatible with Copper (Cu) or Aluminium (Al)
• Configuration: 2 poles for PEN conductor (combined neutral + earth)
• Primary cross-section range:
  • 2.5 to 4 mm² : torque 4 Nm
  • 6 to 50 mm² : torque 12 Nm
• Rated voltage: 1000 V AC / 1500 V DC
• Conductive grease: included to optimize contact
• Standard: compliant with EN60947-7-1

Physical characteristics

• Housing: PA66 self-extinguishing V0, removable cover
• Conductive body: tinned aluminium
• Mounting: DIN rail or surface mounting
• Number of poles: 2 (neutral and earth combined – PEN)
• Outputs per pole: 2
• Protection: IP20

Packing

• Sold: unit
• Box: 14 pieces
• Carton: 308 pieces

Features

• Function: centralizes the PEN conductor (combination of protective earth PE and neutral N) on a single terminal to ensure distribution and continuity of protection.
• PEN conductor: use in TN-C network reduces the number of conductors and panel space; the PEN conductor must meet a minimum cross-section and must never be interrupted (compliance with NF C 15-100).
• Applications: industrial and commercial installations, modular distribution panels, industrial enclosures requiring a reliable and secure PEN connection.

Technical specifications

• Model reference: DTB-2E50PEN
• Maximum current: 160 A (Cu) / 145 A (Al)
• Accepted sections: 2.5–4 mm² (torque 4 Nm); 6–50 mm² (torque 12 Nm)
• Rated voltage: 1000 V AC / 1500 V DC
• Materials: PA66 V0 housing, tinned aluminium conductive body
• Mounting: DIN rail or surface mounting
• Number of poles: 2 (PEN)
• Outputs per pole: 2
• Protection index: IP20
• Conductive grease: supplied
• Compliance: EN60947-7-1
• Packing: sold individually — box 14 pcs — carton 308 pcs
