Panel-mount terminal block DTB-3E95
DIN rail-mountedscrew connectionhigh-current

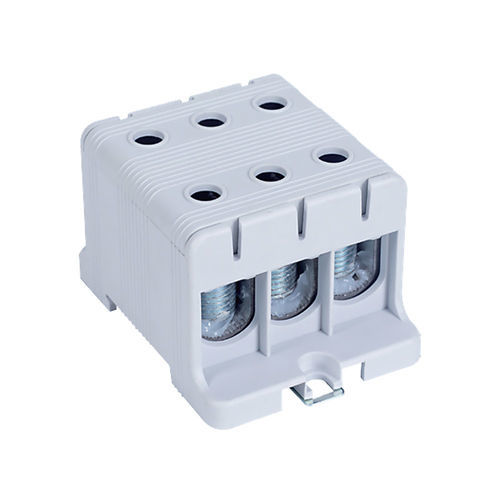

Panel-mount terminal block - DTB-3E95 - Lettel - DIN rail-mounted / screw connection / high-current
Panel-mount terminal block - DTB-3E95 - Lettel - DIN rail-mounted / screw connection / high-current
Add to favorites
Compare this product
Go to the Lettel website for more information

Characteristics

Mounting
panel-mount, DIN rail-mounted
Connection
screw connection
Other characteristics
high-current, single-pole, copper, insulated
Cross-section

Min.: 16 mm²
(0.02 in²)

Max.: 95 mm²
(0.15 in²)

Current

Min.: 220 A

Max.: 245 A

Nominal voltage

Min.: 1,000 V

Max.: 1,500 V

Description

Description
This 1-pole junction block for 6 cables (220–245 A) enables connection of large cross-section conductors (copper or aluminium) up to 95 mm² and distributes power to several outputs. Its 6-connection configuration centralizes distribution at a single point to simplify wiring and increase installation reliability.

Features and applications
This 1-pole, 6-cable junction block supports conductors up to 95 mm² while ensuring reliable power distribution to multiple departures. The 6-connection layout reduces intermediate links and improves overall system reliability.

Recommended applications: power distribution cabinets, multi-output distribution in industrial and commercial environments, wiring simplification and footprint optimization.

Installation and usage recommendations
  • Cable selection: 16 to 95 mm², copper or aluminium.
  • Ferrules: recommended for flexible conductors to ensure uniform contact.
  • Tightening torque: apply the torque appropriate to the conductor cross-section to guarantee a reliable connection (see recommended torque).
  • Mounting: install on DIN rail or surface-mount according to cabinet architecture.
  • Cable management: grouping outputs on this block centralizes distribution and eases future interventions.
  • Circuit identification: clearly label outputs to facilitate operation and maintenance.
  • Maintenance: regularly check tightening condition and contact cleanliness.

Technical characteristics / specifications
  • Maximum current: 245 A (Cu) / 220 A (Al)
  • Connection: Copper (Cu) or Aluminium (Al)
  • Conductor cross-section range: 16 to 95 mm²
  • Tightening torque per conductor: 20 Nm (for 16 to 95 mm²)
  • Rated voltage: 1000 V AC / 1500 V DC
  • Conductive grease: included to optimize contact
  • Standard: compliant with EN60947-7-1
  • Housing: PA66 self-extinguishing V0, removable cover
  • Conductor body: tinned aluminium
  • Mounting: DIN rail or surface-mount
  • Number of poles: 1
  • Number of cables: 6 per block
  • Protection: IP20
  • Packaging: sold individually; box: 3 pcs; carton: 72 pcs
