DIN rail-mounted terminal block DTB-2E50x series

panel-mountscrew connectionpower

Description

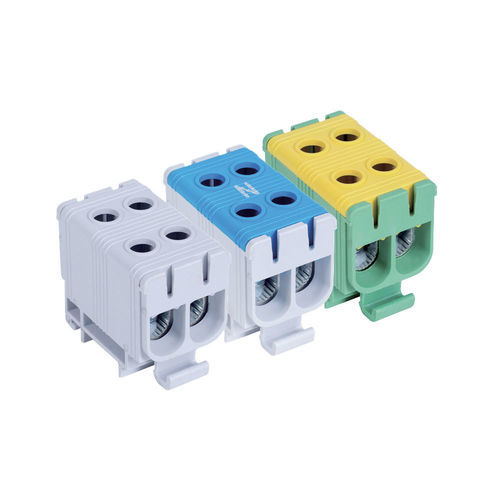

This 1-pole junction block DTB-2E50 is designed to connect copper and aluminium conductors up to 50 mm². It provides an elevated current capacity for reliable medium-power distribution in distribution cabinets and industrial installations.

Characteristics

• Electrical:
  • Maximum current: 160 A (Copper) / 145 A (Aluminium)
  • Compatible conductor types: Copper (Cu) and Aluminium (Al)
  • Cross-section range: Copper 2.5–50 mm²; Aluminium 6–50 mm²
  • Tightening torque by cable section: 2.5–4 mm² → 4 Nm; 6–50 mm² → 12 Nm
  • Rated voltage: 1000 V AC / 1500 V DC
  • Conductive grease: included to optimize contact
  • Standard: compliant with EN60947-7-1
• Physical:
  • Housing: PA66 self-extinguishing V0, removable cover
  • Color coding for function: light grey (phase/general), light grey and blue (neutral N), green/yellow (earth PE)
  • Conductive core: tinned aluminium
  • Mounting: DIN rail or surface mounting
  • Number of poles: 1
  • Number of cables: 4 per block
  • Protection rating: IP20
• Packaging:
  • Sold individually
  • Box: 14 pieces
  • Carton: 308 pieces

Functions and applications

• Function: enables connection of multiple circuits at a single point while ensuring mechanical retention and optimal conductivity between copper and aluminium conductors.
• Applications: intermediate distribution cabinets, industrial and commercial installations requiring reliable medium-power circuit distribution.
• Usage advice: respect the copper and aluminium cross-section ranges, use ferrules for flexible conductors, apply the specified tightening torque, mount on DIN rail or surface, and use color coding for circuit identification. Regularly check tightening condition and contact cleanliness.

Variants and order codes
Order code | Primary current | Cable section | Color | Stock status
DTB-2E50 | Cu: 160 A / Al: 145 A | Cu: 2.5–50 mm² / Al: 6–50 mm² | Light grey | instock
DTB-2E50B | Cu: 160 A / Al: 145 A | Cu: 2.5–50 mm² / Al: 6–50 mm² | Light grey / blue | instock
DTB-2E50D | Cu: 160 A / Al: 145 A | Cu: 2.5–50 mm² / Al: 6–50 mm² | Green / yellow | instock

Documents available
Range datasheet for junction blocks (technical document, PDF) available via the product download area.

Technical features / specifications

• Current: 160 A (Cu) / 145 A (Al)
• Compatible connections: Copper 2.5–50 mm²; Aluminium 6–50 mm²
• Tightening torque: 2.5–4 mm² = 4 Nm; 6–50 mm² = 12 Nm
• Rated voltage: 1000 V AC / 1500 V DC
• Materials: PA66 V0 housing; tinned aluminium conductive core
• Mounting: DIN rail or surface
• Number of poles: 1; Number of cables: 4
• Ingress protection: IP20
• Standard: EN60947-7-1
