DIN rail-mounted terminal block DTB-X3E35
panel-mountscrew connectioninsulated

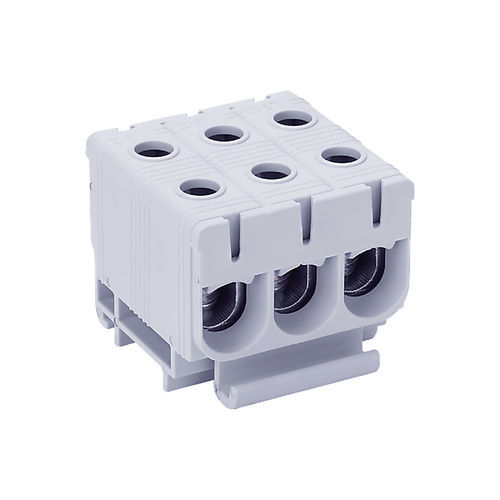

DIN rail-mounted terminal block - DTB-X3E35 - Lettel - panel-mount / screw connection / insulated
DIN rail-mounted terminal block - DTB-X3E35 - Lettel - panel-mount / screw connection / insulated
Add to favorites
Compare this product
Go to the Lettel website for more information

Characteristics

Mounting
DIN rail-mounted, panel-mount
Connection
screw connection
Other characteristics
copper, insulated, three-phase
Number of poles
3-pole
Cross-section

Max.: 35 mm²
(0.05 in²)

Min.: 2.5 mm²
(0 in²)

Current

Max.: 135 A

Min.: 120 A

Nominal voltage

1,000 V, 1,500 V

Description

Overview
  • Three-phase 3-pole junction block designed to centralize power distribution across three phases (L1 / L2 / L3) with copper or aluminium conductors, for cross-sections from 2.5 to 35 mm².


Electrical characteristics
  • Maximum current: 135 A (Copper) / 120 A (Aluminium).
  • Connection: accepts copper (Cu) or aluminium (Al) conductors.
  • Cross-section range: 2.5 to 35 mm² with recommended tightening torques:
    • 2.5 to 16 mm²: torque 3 Nm
    • 25 to 35 mm²: torque 6 Nm
  • Rated voltage: 1000 V AC / 1500 V DC.
  • Conductive grease supplied to ensure optimal contact.
  • Standard: compliant with EN60947-7-1.


Physical characteristics
  • Housing: PA66 self-extinguishing V0, removable cover.
  • Conductor body: tinned aluminium.
  • Mounting: DIN rail or surface mounting.
  • Number of poles: 3 (inputs L1 / L2 / L3).
  • Outputs per pole: 2.
  • Protection: IP20.


Features and applications
  • Enables compact, balanced distribution of power across three phases, reducing intermediate connections and improving installation reliability.
  • Typical applications: three-phase electrical panels, industrial distribution boards and commercial installations requiring balanced and secure three-phase supply.


Usage recommendations
  • Cable selection: use appropriate cross-sections (2.5 to 35 mm²) in copper or aluminium.
  • Ferrules: recommend using ferrules for flexible cables to ensure uniform contact.
  • Tightening: apply the recommended torque according to cross-section (3–6 Nm) to ensure a reliable connection.
  • Mounting: fix on DIN rail or surface mount according to cabinet architecture.
  • Cable organization: distribute conductors correctly across the three poles for optimal balancing.
  • Identification: clearly mark L1, L2 and L3 to facilitate operation and maintenance.
  • Maintenance: regularly check tightening and contact cleanliness.


Packaging
  • Sold individually.
  • Box: 6 pieces.
  • Carton: 198 pieces.


Technical specifications
  • Model: DTB-X3E35
  • Maximum current: 135 A (Cu) / 120 A (Al)
  • Accepted cross-sections: 2.5 to 35 mm²
  • Tightening torques: 2.5–16 mm² = 3 Nm; 25–35 mm² = 6 Nm
  • Rated voltage: 1000 V AC / 1500 V DC
  • Materials: housing PA66 V0; conductor body tinned aluminium
  • Mounting: DIN rail or surface
  • Number of poles: 3
  • Outputs per pole: 2
  • Ingress protection: IP20
  • Standard: EN60947-7-1
  • Accessories: conductive grease included
