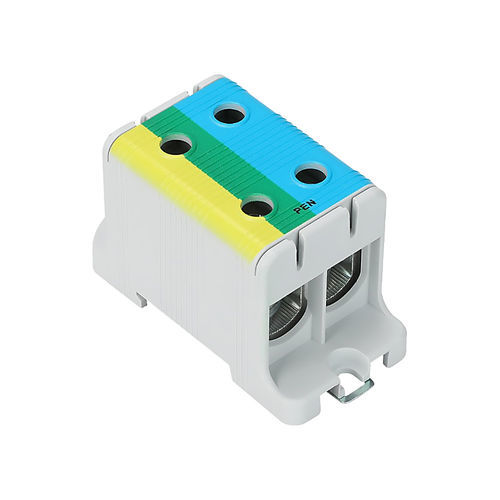

DIN rail-mounted terminal block DTB-2E95PEN

panel-mountscrew connectioncopper

Overview
DTB-2E95PEN PEN terminal block for copper and aluminium conductors, centralising neutral (N) and protective earth (PE) in a single point. Accepts conductors from 16 to 95 mm² and is rated 245 A for copper and 220 A for aluminium. Designed for modular distribution panels and industrial enclosures.

Electrical characteristics

• Maximum current: 245 A (Copper) / 220 A (Aluminium)
• Connection: copper (Cu) or aluminium (Al) conductors
• Configuration: 2-pole for PEN conductor (combined neutral and protective earth)
• Section range: 16 to 95 mm² (H5 torque, 20 Nm)
• Rated voltage: 1000 V AC / 1500 V DC
• Conductive grease: supplied to optimise contact
• Standard: compliant with EN 60947-7-1

Physical characteristics

• Housing: PA66 self-extinguishing V0, removable cover
• Conductor body: tinned aluminium
• Mounting: DIN rail or surface mounting
• Number of poles: 2 (PEN)
• Outputs per pole: 2
• Protection: IP20

Packaging

• Sold: unit
• Box: 4 pieces
• Carton: 96 pieces

Features
The DTB-2E95PEN terminal block is designed to centralise the PEN conductor, combining neutral (N) and protective earth (PE) at a single point. It provides reliable power distribution, ensures electrical continuity and supports protection of metallic parts.

PEN conductor
In a TN-C system, using a PEN conductor saves a separate protective conductor (PE) and associated pole. This reduces installation complexity, material cost and panel space while maintaining neutral and protective functions in a single conductor. According to applicable rules, the PEN conductor must respect a minimum cross-section and must not be interrupted.

Applications
Ideal for industrial and commercial installations: modular distribution panels, industrial enclosures and building installations.

Technical specifications

• Maximum current: 245 A (Cu) / 220 A (Al)
• Section range: 16 to 95 mm² (H5 torque, 20 Nm)
• Rated voltage: 1000 V AC / 1500 V DC
• Materials: PA66 V0 housing, tinned aluminium conductor body
• Mounting: DIN rail or surface mounting
• Number of poles: 2 (PEN)
• Outputs per pole: 2
• Protection: IP20
• Standard: EN 60947-7-1
• Conductive grease: included
• Packaging: unit / box 4 pcs / carton 96 pcs
