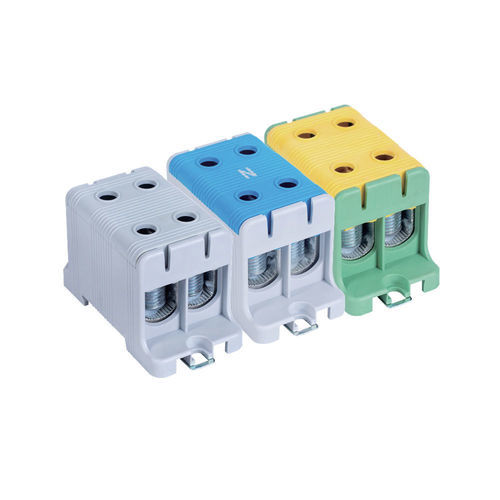

DIN rail-mounted terminal block DTB-2E95x series

panel-mountscrew connectioninsulated

Summary
1-pole 4-core terminal block for copper or aluminium conductors, cross-section 16 to 95 mm². Rated currents: 245 A (Cu) / 220 A (Al). Designed for power distribution, compliant with EN60947-7-1.

Characteristics

• Electrical:
  • Maximum current: 245 A (Cu) / 220 A (Al)
  • Connection: Copper (Cu) or Aluminium (Al)
  • Cross-section range: 16 to 95 mm²
  • Tightening torque per conductor: 20 Nm (for 16 to 95 mm²)
  • Rated voltage: 1000 V AC / 1500 V DC
  • Conductive grease: included to optimize contact
  • Standard: compliant with EN60947-7-1
• Physical:
  • Housing: PA66 V0 self-extinguishing, removable cover; available in 3 colors for functional identification
    • Light grey: phase / general use
    • Light grey and blue: neutral (N)
    • Green and yellow: earth (PE)
  • Conductive body: tinned aluminium
  • Mounting: DIN rail or surface mounting
  • Number of poles: 1
  • Number of conductors: 4 per block
  • Protection: IP20
• Packaging:
  • Sold individually
  • Box: 4 pieces
  • Carton: 96 pieces

Features

• Function: connection of large cross-section conductors (up to 95 mm²) for multi-feed distribution from a single connection point, ensuring electrical continuity and mechanical strength under high currents.
• Applications: power distribution panels in industrial and commercial buildings, branching multiple feeds from a main line.
• Usage advice:
  • Cable selection: 16 to 95 mm², Cu or Al.
  • Ferrules: recommended for flexible conductors to ensure uniform contact.
  • Tightening: apply the appropriate torque for the conductor cross-section (20 Nm specified for the 16-95 mm² range).
  • Mounting: secure on DIN rail or surface-mounted according to panel architecture.
  • Circuit identification: use housing colors to identify phase, neutral and earth.
  • Maintenance: regularly check tightness and cleanliness of contacts.

Variants and order codes
DTB-2E95 | Primary current | Cable cross-section | Color | Stock status
DTB-2E95 | Cu: 245A / Al: 220A | Cu/Al: 16 – 95 mm² | Light grey | instock
DTB-2E95B | Cu: 245A / Al: 220A | Cu/Al: 16 – 95 mm² | Light grey / blue | instock
DTB-2E95D | Cu: 245A / Al: 220A | Cu/Al: 16 – 95 mm² | Green and yellow | instock

Technical specifications

• Rated current: 245 A (Cu) / 220 A (Al)
• Accepted conductor cross-section: 16 – 95 mm²
• Rated voltage: 1000 V AC / 1500 V DC
• Tightening torque: 20 Nm
• Housing material: PA66 V0 (self-extinguishing)
• Conductive body: tinned aluminium
• Mounting: DIN rail or surface mount
• Protection rating: IP20
• Compliance: EN60947-7-1
