DIN rail-mounted terminal block DTB-1E95x series

panel-mountscrew connectionhigh-current

Presentation
Single-pole terminal block designed for connection of large-section cables (16 to 95 mm²). Provides reliable connection of copper and aluminium conductors with high current capacity for main distribution in enclosures and power panels.

Electrical characteristics

• Max current : 245 A (Copper) / 220 A (Aluminium)
• Conductor compatibility : accepts copper (Cu) and aluminium (Al) conductors
• Cross-section range : 16 to 95 mm²
• Connection : hexagon socket screw
• Tightening torque : 20 Nm (for 16 to 95 mm²)
• Rated voltage : 1000 V AC / 1500 V DC
• Conductive grease : supplied to optimise contact
• Standard : compliant with EN60947-7-1

Physical characteristics

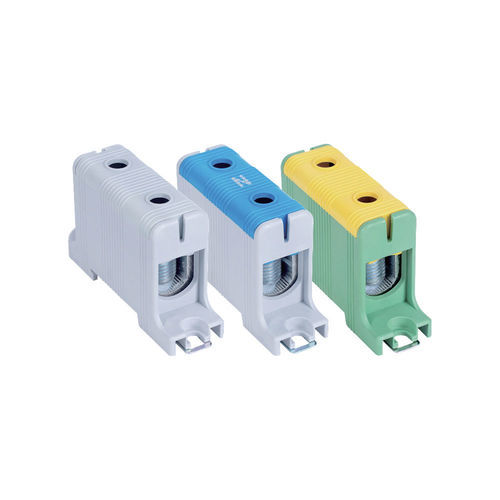

• Housing : PA66 V0, removable cover; available in 3 colour variants for identification (light grey; light grey/blue; green/yellow)
• Conductor body : tinned aluminium
• Mounting : DIN rail or surface mounting
• Number of poles : 1
• Number of cables : 2 per block
• Ingress protection : IP20

Packaging

• Sold : unit
• Box : 7 pieces
• Carton : 168 pieces

Functions and applications

• Function : connection of large-section cables up to 95 mm² for main power links and incoming power feeds
• Applications : main distribution in industrial electrical enclosures, power panels, energy installations requiring high current capacity
• Benefits : reliable connection for copper and aluminium, high mechanical retention with recommended torque, functional identification by cover colour

Usage recommendations

• Cable selection : use conductors 16 to 95 mm² (Cu or Al)
• Ferrules : recommended for flexible cables to ensure optimal contact
• Tightening : apply 20 Nm to ensure mechanical and electrical retention
• Mounting : install on DIN rail or surface-mount according to enclosure architecture
• Identification : use cover colours to identify phase (light grey), neutral (light grey/blue) and earth (green/yellow)
• Maintenance : regularly check tightening, especially on high-current circuits

Variants and order codes
DTB-1E95 | Cu: 245 A / Al: 220 A | Cu/Al: 16–95 mm² | Light grey | instock
DTB-1E95B | Cu: 245 A / Al: 220 A | Cu/Al: 16–95 mm² | Light grey / blue | instock
DTB-1E95D | Cu: 245 A / Al: 220 A | Cu/Al: 16–95 mm² | Green / yellow | instock

Presentation documents
Product sheet / product brochure: Terminal block range (PDF).

Technical specifications

• Main reference : DTB-1E95x
• Max current : 245 A (Cu) / 220 A (Al)
• Accepted cable section : 16–95 mm²
• Recommended tightening torque : 20 Nm
• Rated voltage : 1000 V AC / 1500 V DC
• Housing : PA66 V0, removable cover, colour options for identification
• Conductor body : tinned aluminium
• Mounting : DIN rail or surface
• Number of poles : 1
• Number of cables : 2
• Ingress protection : IP20
• Compliance : EN60947-7-1
• Conductive grease : supplied
• Packaging : unit / box 7 pcs / carton 168 pcs
