Panel-mount terminal block DTB-1E50x series

DIN rail-mountedscrew connectioncopper

Description

• Single-pole power terminal block designed for connection of large-section conductors (up to 50 mm²) in copper or aluminum, intended for industrial and commercial distribution and power applications.

Electrical

• Maximum current: 160 A (Cu) / 145 A (Al)
• Connection: compatible with copper (Cu) and aluminum (Al)
• Cross-section range:
  • Copper: 2.5 to 50 mm²
  • Aluminum: 6 to 50 mm²
• Clamping: hexagon socket screw
• Tightening torque:
  • 4 Nm (for 2.5 to 4 mm²)
  • 12 Nm (for 6 to 50 mm²)
• Rated voltage: 1000 V AC / 1500 V DC
• Conductive grease: included to optimize contact
• Standard: compliant with EN60947-7-1

Physical

• Housing: PA66 self-extinguishing V0, removable cover, available in 3 colors for functional identification (light gray for phase/general use, light gray and blue for neutral, green and yellow for earth)
• Conductive body: tinned aluminum
• Mounting: DIN rail or surface-mounted
• Number of poles: 1
• Number of conductors: 2 per block
• Protection: IP20

Packaging

• Sold individually
• Box: 23 pieces
• Carton: 506 pieces

Features

• Provides connection for large conductor sections up to 50 mm² with enhanced current capacity.
• Reliable connection between copper and aluminum conductors with mechanical retention suitable for large sections.

Applications

• Distribution cabinets, industrial panels, power systems requiring high-capacity connections.
• Main line connections or sub-feed connections, mixed Cu/Al installations.

Usage recommendations

• Choice of conductor: respect the specific ranges (Cu 2.5–50 mm² / Al 6–50 mm²).
• Ferrules: use ferrules for flexible conductors to ensure uniform clamping.
• Tightening: apply the appropriate torque (4 to 12 Nm) according to conductor section.
• Mounting: install on DIN rail or surface-mounted according to configuration.
• Identification: use housing colors to identify phase, neutral and earth.
• Maintenance: regularly check connections, especially on large sections.

Variants and ordering codes (table)
Order code | Primary current | Conductor section | Color | Stock

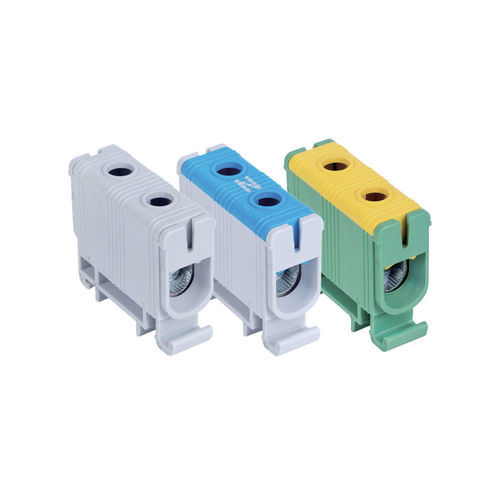

DTB-1E50 | Cu: 160 A / Al: 145 A | Cu: 2.5 – 50 mm² / Al: 6 – 50 mm² | Light gray | in stock
DTB-1E50B | Cu: 160 A / Al: 145 A | Cu: 2.5 – 50 mm² / Al: 6 – 50 mm² | Light gray / blue | in stock
DTB-1E50D | Cu: 160 A / Al: 145 A | Cu: 2.5 – 50 mm² / Al: 6 – 50 mm² | Green / yellow | in stock

Product documentation
Range of terminal blocks (PDF document available)
