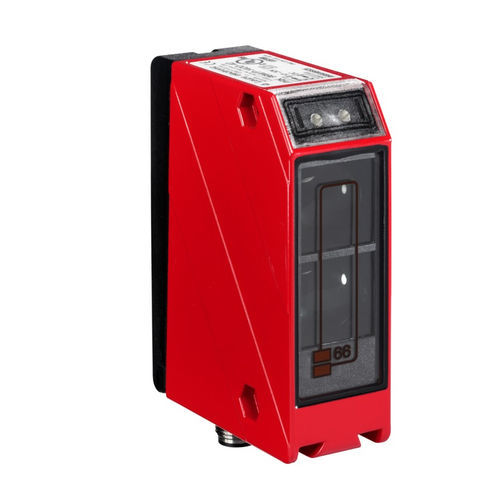

Polarized retroreflective photoelectric sensor PRK 96M/P-1370-42

rectangularLEDdigital

Operating principle - Reflection principle Operating range - Guaranteed operating range Operating range limit - Typical operating range Light source - LED, Red Supply voltage UB - 10 ... 30 V, DC Residual ripple - 0 ... 15 %, From UB Open-circuit current - 0 ... 50 mA Number of digital switching outputs - 2 Piece(s) Switching element - Transistor, PNP Switching principle - Light switching Switching element - Transistor, PNP Switching principle - Light switching Function - Warning output Switching frequency - 1,000 Hz Type of connection - Connector Thread size - M12 Material - Metal No. of pins - 4 -pin Encoding - A-coded Dimension (W x H x L) - 30 mm x 90 mm x 70 mm Housing material - Metal Metal housing - Zinc Lens cover material - Glass Net weight - 380 g Compatibility of materials - ECOLAB Note - Housing part used contains perfluorobutanesulfonic acid (PFBS) Type of display - LED Operational controls - 270° potentiometer Ambient temperature, operation - -40 ... 55 °C Degree of protection - IP 67 Protection class - II Approvals - c UL US Standards applied - IEC 60947-5-2
