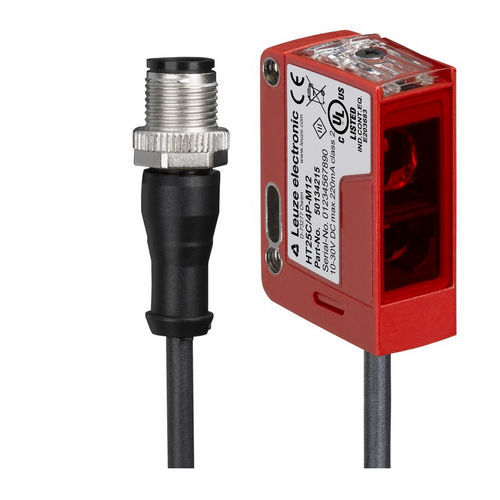

Photoelectric sensor with background suppression HT25C.HF/4P-200-M12

diffuserectangularLED

Operating principle - Diffuse reflection principle with background suppression Special version - Suppression of HF illumination (LED) Black-white error - < 10% up to 400 mm Operating range - Guaranteed operating range Operating range limit - Typical operating range Adjustment range - 50 ... 1,200 mm Light source - LED, Red Wavelength - 640 nm LED group - Exempt group (in acc. with EN 62471) Protective circuit - Polarity reversal protection Short circuit protected Supply voltage UB - 10 ... 30 V, DC, Incl. residual ripple Residual ripple - 0 ... 15 %, From UB Open-circuit current - 0 ... 20 mA Number of digital switching outputs - 2 Piece(s) Switching element - Transistor, PNP Switching principle - Light switching Switching element - Transistor, PNP Switching principle - Dark switching Switching frequency - 250 Hz Response time - 2 ms Readiness delay - 300 ms Function - Signal OUT Voltage supply Type of connection - Cable with connector Cable length - 200 mm Sheathing material - PUR Cable color - Black Wire cross section - 0.2 mm² Thread size - M12 Type - Male Material - PUR No. of pins - 4 -pin Encoding - A-coded Dimension (W x H x L) - 15 mm x 42.7 mm x 30 mm Housing material - Plastic Plastic housing - ABS Lens cover material - Plastic Net weight - 33 g Housing color - Red Type of fastening - Through-hole mounting with M4 thread Via optional mounting device Compatibility of materials - ECOLAB
