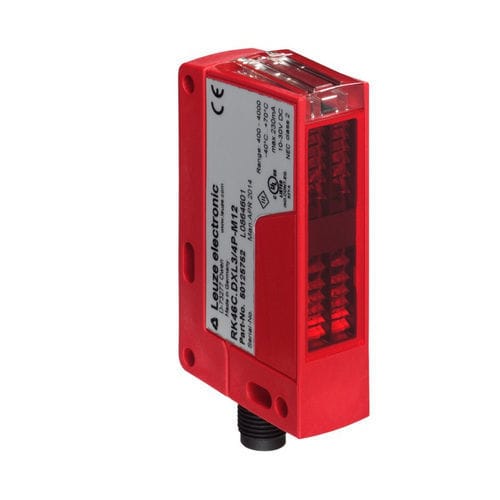

Polarized retroreflective photoelectric sensor RK46C.DXL3/4P-M12

rectangularLEDdigital

Operating principle - Reflection principle Application - Detection of irregular objects on conveyor belt Detection of objects with openings Detection of stretch-wrapped objects Switching distance Sn - 0 ... 4,000 mm Special version - Extra long light spot (XL) Operating range - 0.4 ... 4 m, With reflector TK(S) 100x100 Operating range - Guaranteed operating range Operating range limit - 0.4 ... 5.2 m, With reflector TK(S) 100x100 Operating range limit - Typical operating range Measurement field length - 60 mm Type of detection range - Light-band 40-60 mm Light source - LED, Red Wavelength - 620 nm Transmitted-signal shape - Pulsed LED group - Exempt group (in acc. with EN 62471) Minimum object size - 8 mm Protective circuit - Polarity reversal protection Short circuit protected Transient protection Supply voltage UB - 10 ... 30 V, DC, Incl. residual ripple Residual ripple - 0 ... 15 %, From UB Open-circuit current - 0 ... 20 mA Number of digital switching outputs - 2 Piece(s) Type - Digital switching output Voltage type - DC Switching current, max. - 100 mA Switching voltage - high: ≥(UB-2V) low: ≤ 2 V Switching element - Transistor, PNP Switching principle - Light switching Switching element - Transistor, PNP Switching principle - Dark switching Switching frequency - 250 Hz Response time - 2 ms Readiness delay - 300 ms Number of connections - 1 Piece(s) Function - Signal OUT Voltage supply Type of connection - Connector Thread size - M12 Type - Male Material - Plastic No. of pins - 4 -pin Encoding - A-coded
