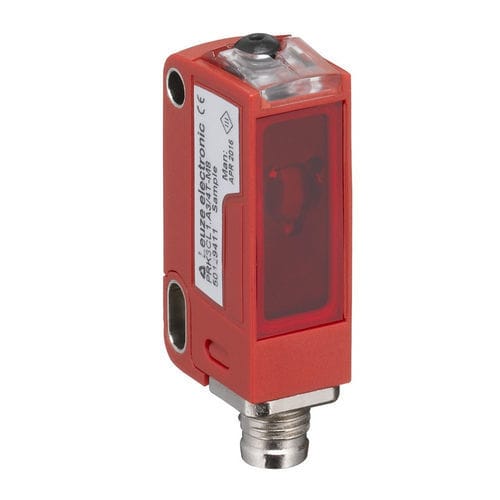

Polarized retroreflective photoelectric sensor PRK3C.A3/LP-M8

rectangularLEDdigital

Operating principle - Reflection principle Special version - Autocollimation Operating range - 0 ... 4 m, With reflector TK(S) 100x100 Operating range - Guaranteed operating range Operating range limit - 0 ... 5 m, With reflector TK(S) 100x100 Operating range limit - Typical operating range Light source - LED, Red Wavelength - 635 nm LED group - Exempt group (in acc. with EN 62471) Protective circuit - Polarity reversal protection Short circuit protected Supply voltage UB - 10 ... 30 V, DC, Incl. residual ripple Residual ripple - 0 ... 15 %, From UB Open-circuit current - 0 ... 15 mA Number of digital switching outputs - 2 Piece(s) Switching element - Transistor, Push-pull Switching principle - IO-Link / light switching (PNP)/dark switching (NPN) Switching element - Transistor, PNP Switching principle - Dark switching Switching frequency - 1,500 Hz Response time - 0.33 ms Readiness delay - 300 ms Type - IO-Link COM mode - COM2 Min. cycle time - COM2 = 2.3 ms Specification - V1.1 SIO-mode support - Yes Function - Signal IN Signal OUT Voltage supply Type of connection - Connector Thread size - M8 Type - Male Material - Metal No. of pins - 4 -pin Dimension (W x H x L) - 11.4 mm x 34.2 mm x 18.3 mm Housing material - Plastic Plastic housing - PC-ABS Lens cover material - Plastic / PMMA Net weight - 10 g Housing color - Red Type of fastening - Through-hole mounting Via optional mounting device Compatibility of materials - ECOLAB
